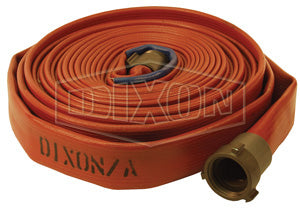

H525R100RAF Dixon 500# Nitrile Covered Fire Hose - Light Duty - Red - Coupled - Female x Male NST(NH) Expansion Ring Couplings (Aluminum) - 2-1/2" Hose Size - 2-13/16" Bowl Size - 100ft Length

H525R100RAF Dixon 500# Nitrile Covered Fire Hose - Light Duty - Red - Coupled - Female x Male NST(NH) Expansion Ring Couplings (Aluminum) - 2-1/2" Hose Size - 2-13/16" Bowl Size - 100ft Length

Save $120.25 Save $120.25
$1,082.22
$1,082.22 - $1,082.22
$1,082.22
$961.97
$961.97 - $961.97
$961.97

Dixon Fire Fittings
Fire Hose - 500# Nitrile Covered Fire Hose Light Duty - Red - Coupled

Ideal for industrial and construction washdown and discharge applications.
Specifications for Variant SKU: H525R100RAF Dixon
Series: Fire Hose
Hose Color(s): Red
Internal Diameter: 2.50in
Tubing Construction: Nitrile
Cover Construction: Nitrile
Ends Configuration: 2-1/2in Male NST, 2-1/2in Female NST
Features:
  • Outer construction: thin ribbed nitrile.
  • Tube construction: nitrile.
  • Proof pressure: 500 PSI at ambient temperature 70°F (21°C).
  • Service test pressure: 250 PSI at ambient temperature 70°F (21°C).
  • Working pressure: 225 PSI at ambient temperature 70°F (21°C).
Part Number Size Bowl Length Weight
(Lbs.)
Rocker Lug Aluminum NST(NH)
H515R50RAF 1-1/2" 1-13/16" 50 ft 12.0000
H525R50RAF 2-1/2" 2-13/16" 50 ft 22.0000
H515R100RAF 1-1/2" 1-13/16" 100 ft 28.0000
H525R100RAF 2-1/2" 2-13/16" 100 ft 46.2000
Rocker Lug Brass NST(NH)
H515R50RBF 1-1/2" 1-13/16" 50 ft 2.8300
H525R50RBF 2-1/2" 2-13/16" 50 ft 28.8800
Rocker Lug Aluminum NPSH
H515R50RAS 1-1/2" 1-13/16" 50 ft 16.7500
H525R50RAS 2-1/2" 2-13/16" 50 ft 25.0000
H515R100RAS 1-1/2" 1-13/16" 100 ft 26.1500
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
