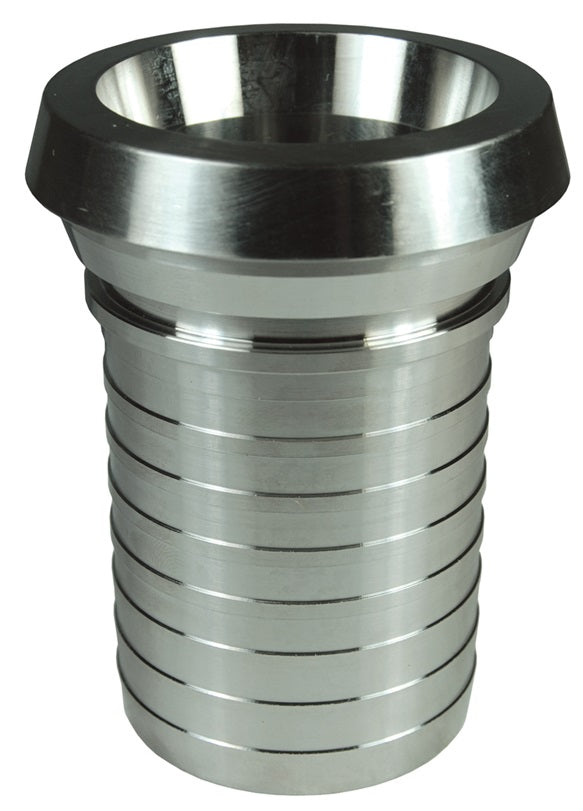

HA0240 by Dixon Valve | Holedall® DIN External Crimp Fitting | Female Stem | 40 DIN | 1-1/2" Size | 316 Stainless Steel

Save $1.62

$73.54

$73.54 - $73.54

$73.54

$71.92

$71.92 - $71.92

$71.92

Dixon Valve
Holedall® DIN External Crimp Fitting | Female Stem

Quantity

Specifications for Variant SKU: HA0240 Dixon
Brand:	Holedall
Shape (Orientation):	Straight
Material(s):	316 Stainless Steel

Safety Notes:
Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure. Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage. Strict adherence to ferrule OD range (internally expanded) for each hose end to be assembled is essential for satisfactory performance. Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure. Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.

316 Stainless Steel Part Number	Size	DIN
HA0240	1-1/2"	40
HA0241	2"	50
HA0242	2-1/2"	65
HA0243	3"	80

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
