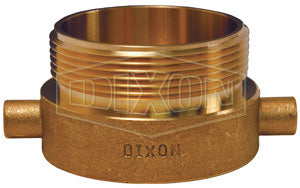

HA2530F Dixon Cast Brass Hydrant Adapter - Pin Lug - Increaser / Reducer - 2-1/2" Female NST(NH) x 3" Male NST(NH)

HA2530F Dixon Cast Brass Hydrant Adapter - Pin Lug - Increaser / Reducer - 2-1/2" Female NST(NH) x 3" Male NST(NH)

Save $10.35 Save $10.35
$102.11
$102.11 - $102.11
$102.11
$91.76
$91.76 - $91.76
$91.76

Dixon Fire Fittings
Brass Hydrant Adapter - Pin Lug - Female x Male
Specifications for Variant SKU: HA2530F Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NST, 3in Male NST
Material(s): Brass
Part Number Female Thread Male Thread Weight
(Lbs.)
HA15S76 1-1/2" Female NPSH 3/4" Male GHT 0.4800
HA15S75 1-1/2" Female NPSH 3/4" Male NPSH -
HA15S75T 1-1/2" Female NPSH 3/4" Male NPT 0.7570
HA15S10S 1-1/2" Female NPSH 1" Male NPSH 0.5700
HA15S10T 1-1/2" Female NPSH 1" Male NPT 0.6200
HA15S15T 1-1/2" Female NPSH 1-1/2" Male NPT 0.5000
HA15S15F 1-1/2" Female NPSH 1-1/2" Male NST(NH) 0.6200
HA15T15S 1-1/2" Female NPT 1-1/2" Male NPSH 0.9000
HA15T15F 1-1/2" Female NPT 1-1/2" Male NST(NH) 0.7500
HA1576 1-1/2" Female NST(NH) 3/4" Male GHT 0.4400
HA1575 1-1/2" Female NST(NH) 3/4" Male NPSH 0.5800
HA1575T 1-1/2" Female NST(NH) 3/4" Male NPT 0.4400
HA1510 1-1/2" Female NST(NH) 1" Male NPSH 0.6400
HA1510F 1-1/2" Female NST(NH) 1" Male NST(NH) 0.4700
HA1510T 1-1/2" Female NST(NH) 1" Male NPT 0.4000
HA1515 1-1/2" Female NST(NH) 1-1/2" Male NPSH 0.5500
HA1515T 1-1/2" Female NST(NH) 1-1/2" Male NPT 0.5400
HA1515F 1-1/2" Female NST(NH) 1-1/2" Male NST(NH) 0.7800
HA1525F 1-1/2" Female NST(NH) 2-1/2" Male NST(NH) 2.2250
HA20S15S 2" Female NPSH 1-1/2" Male NPSH 0.9600
HA20S15T 2" Female NPSH 1-1/2" Male NPT 1.0300
HA20S15F 2" Female NPSH 1-1/2" Male NST(NH) 0.9500
HA20S25F 2" Female NPSH 2-1/2" Male NST(NH) 1.7400
HA20T25F 2" Female NPT 2-1/2" Male NST(NH) 1.9650
HA2025F 2" Female NST(NH) 2-1/2" Male NST(NH) 1.8000
HA25S10T 2-1/2" Female NPSH 1" Male NPT 1.1000
HA25S15S 2-1/2" Female NPSH 1-1/2" Male NPSH 1.3240
HA25S15F 2-1/2" Female NPSH 1-1/2" Male NST(NH) 1.2500
HA25S25F 2-1/2" Female NPSH 2-1/2" Male NST(NH) 1.3000
HA2576 2-1/2" Female NST(NH) 3/4" Male GHT 0.8720
HA2575T 2-1/2" Female NST(NH) 3/4" Male NPT 0.8700
HA2510 2-1/2" Female NST(NH) 1" Male NPSH 1.3915
HA2510F 2-1/2" Female NST(NH) 1" Male NST(NH) 0.8500
HA2510T 2-1/2" Female NST(NH) 1" Male NPT 0.8500
HA2515 2-1/2" Female NST(NH) 1-1/2" Male NPSH 0.9500
HA2515F 2-1/2" Female NST(NH) 1-1/2" Male NST(NH) 0.8800
HA2515T 2-1/2" Female NST(NH) 1-1/2" Male NPT 0.9700
HA2520 2-1/2" Female NST(NH) 2" Male NPSH 0.9500
HA2520F 2-1/2" Female NST(NH) 2" Male NST(NH) 0.9500
HA2520T 2-1/2" Female NST(NH) 2" Male NPT 0.8900
HA2525 2-1/2" Female NST(NH) 2-1/2" Male NPSH 0.9600
HA2525F 2-1/2" Female NST(NH) 2-1/2" Male NST(NH) 1.1500
HA2525T 2-1/2" Female NST(NH) 2-1/2" Male NPT 1.0000
HA2530 2-1/2" Female NST(NH) 3" Male NPSH 2.3800
HA2530F 2-1/2" Female NST(NH) 3" Male NST(NH) 2.8200
HA2530T 2-1/2" Female NST(NH) 3" Male NPT 2.1500
HA30S25F 3" Female NPSH 2-1/2" Male NST(NH) 2.2500
HA30S25T 3" Female NPSH 2-1/2" Male NPT 2.6050
HA3015S 3" Female NST(NH) 1-1/2" Male NPSH 2.9340
HA3015F 3" Female NST(NH) 1-1/2" Male NST(NH) 2.4100
HA3025F 3" Female NST(NH) 2-1/2" Male NST(NH) 2.0200
HA4025F 4" Female NST(NH) 2-1/2" Male NST(NH) 3.7000
HA4525F 4-1/2" Female NST(NH) 2-1/2" Male NST(NH) 4.8600
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
