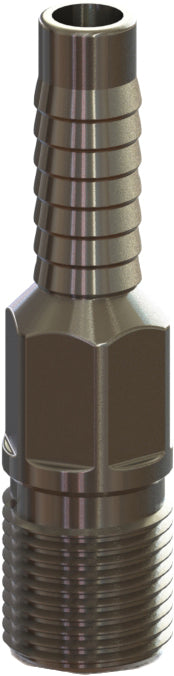

HAA-4 by Campbell Fittings | Threaded Combination Nipple | 1" Male NPT Thread x 1" Hose Barb | Aluminum

Name: HAA-4 by Campbell Fittings | Threaded Combination Nipple | 1" Male NPT Thread x 1" Hose Barb | Aluminum
Brand: Campbell Fittings
SKU: HAA-4 Campbell Fittings
Price: 10.58 USD
Availability: InStock

Save $7.05

$17.63

$17.63 - $17.63

$17.63

$10.58

$10.58 - $10.58

$10.58

by Campbell
Combination Nipples & Menders:HAA Threaded Combination Nipple

Specifications for Variant SKU: HAA-4 Campbell Fittings
Series:	HAA Series
Shape (Orientation):	Straight
Ends Configuration:	1in Male NPT, 1in Hose Barb
Material(s):	Aluminum

Recommended Use:	Liquid, bulk handling, low pressure air
Recommended Hose Attachments:	Sleeves Preformed Bands Clamps
Features and Benefits:	Maximum number of serrations for maximum holding power Long lead serration for easier hose insertion Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation


Part Number	Hose Size
HAA-2	1/2"
HAA-3	3/4"
HAA-4	1"
HAA-5	1-1/4"
HAA-6	1-1/2"
HAA-8	2"
HAA-10	2-1/2"
HAA-12	3"
HAA-16	4"
HAA-20	5"
HAA-24	6"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
