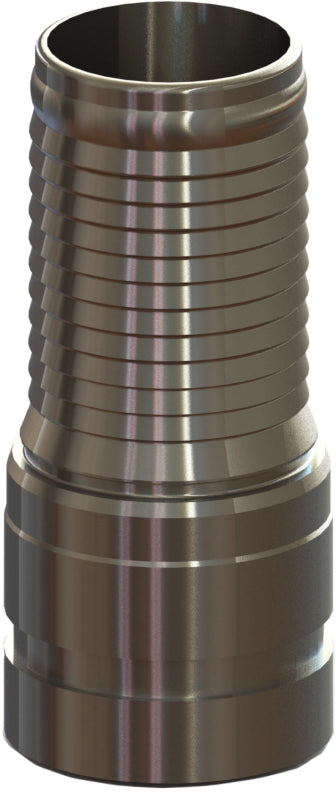

HAGS-8C by Campbell Fittings | Grooved Crimpnology Nipple | 2" Grooved End x 2" Hose Barb | Plated Steel

HAGS-8C by Campbell Fittings | Grooved Crimpnology Nipple | 2" Grooved End x 2" Hose Barb | Plated Steel

Save $11.17 Save $11.17
$39.86
$39.86 - $39.86
$39.86
$28.69
$28.69 - $28.69
$28.69

by Campbell
Crimpnology Nipple:HAGS Grooved Nipple
Specifications for Variant SKU: HAGS-8C Campbell Fittings
Series: HAGS Series
Shape (Orientation): Straight
Ends Configuration: 2in Grooved End, 2in Hose Barb
Material(s): Plated Steel
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles
Special Features:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
Part Number Hose Size
HAGS-6C 1-1/2"
HAGS-8C 2"
HAGS-10C 2-1/2"
HAGS-12C 3"
HAGS-16C 4"
HAGS-24C 6"
HAGS-32C 8"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
