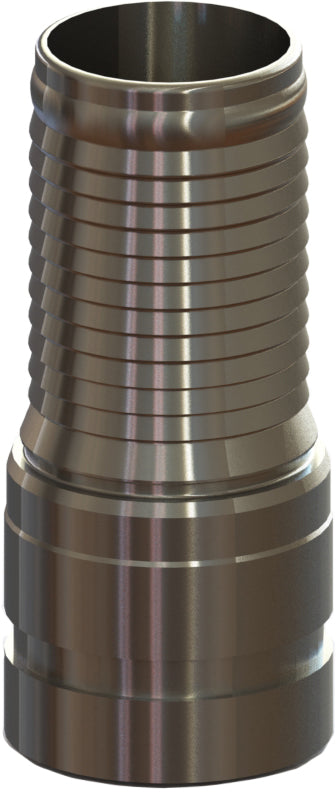

HAGSS-32C by Campbell Fittings | Grooved Crimpnology Nipple | 8" Grooved End x 8" Hose Barb | 316 Stainless Steel

HAGSS-32C by Campbell Fittings | Grooved Crimpnology Nipple | 8" Grooved End x 8" Hose Barb | 316 Stainless Steel

Save $465.67 Save $465.67
$1,164.17
$1,164.17 - $1,164.17
$1,164.17
$698.50
$698.50 - $698.50
$698.50

by Campbell
Crimpnology Nipple:HAGSS Grooved Nipple
Specifications for Variant SKU: HAGSS-32C Campbell Fittings
Series: HAGSS Series
Shape (Orientation): Straight
Ends Configuration: 8in Grooved End, 8in Hose Barb
Material(s): 316 Stainless Steel
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles
Special Features:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
Part Number Hose Size
HAGSS-4C 1"
HAGSS-6C 1-1/2"
HAGSS-8C 2"
HAGSS-10C 2-1/2"
HAGSS-12C 3"
HAGSS-16C 4"
HAGSS-20C 5"
HAGSS-24C 6"
HAGSS-32C 8"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
