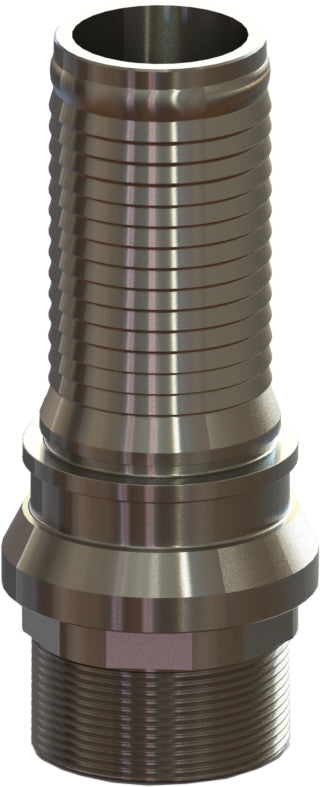

HALPS-6C SW by Campbell Fittings | Crimpnology Nipple | 1-1/2" Male Swivel x 1-1/2" Hose Barb | Plated Steel

HALPS-6C SW by Campbell Fittings | Crimpnology Nipple | 1-1/2" Male Swivel x 1-1/2" Hose Barb | Plated Steel

Save $66.90 Save $66.90
$167.25
$167.25 - $167.25
$167.25
$100.35
$100.35 - $100.35
$100.35

by Campbell
Crimpnology Nipple:HAPS SW & HALPS SW Male Swivel Nipple
Specifications for Variant SKU: HALPS-6C SW Campbell Fittings
Series: HALPS SW Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPT, 1-1/2in Hose Barb
Material(s): Plated Steel
Special Properties: Swivel
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles
Special Features:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
Part Number Hose Size
HAPS-3C SW 3/4"
HAPS-4C SW 1"
HALPS-5C SW 1-1/4"
HALPS-6C SW 1-1/2"
HALPS-8C SW 2"
