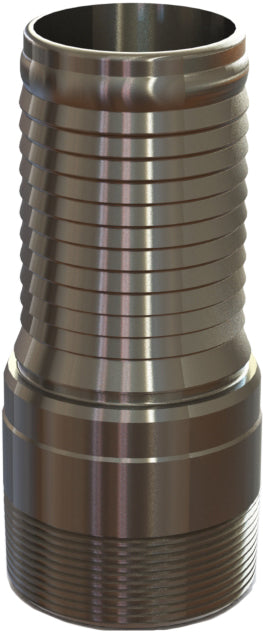

HAPS-16C by Campbell Fittings | Threaded Crimpnology Nipple | 4" Male NPT Thread x 4" Hose Barb | Plated Steel

HAPS-16C by Campbell Fittings | Threaded Crimpnology Nipple | 4" Male NPT Thread x 4" Hose Barb | Plated Steel

Save $35.69 Save $35.69
$89.22
$89.22 - $89.22
$89.22
$53.53
$53.53 - $53.53
$53.53

by Campbell
Crimpnology Nipples:HAPS Threaded Crimpnology Nipple
Specifications for Variant SKU: HAPS-16C Campbell Fittings
Series: HAPS Series
Shape (Orientation): Straight
Ends Configuration: 4in Male NPT, 4in Hose Barb
Material(s): Plated Steel
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles
Special Features:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
Part Number Hose Size
HAPS-4C 1"
HAPS-5C 1-1/4"
HAPS-6C 1-1/2"
HAPS-8C 2"
HAPS-10C 2-1/2"
HAPS-12C 3"
HAPS-16C 4"
HAPS-20C 5"
HAPS-24C 6"
HAPS-32C 8"
