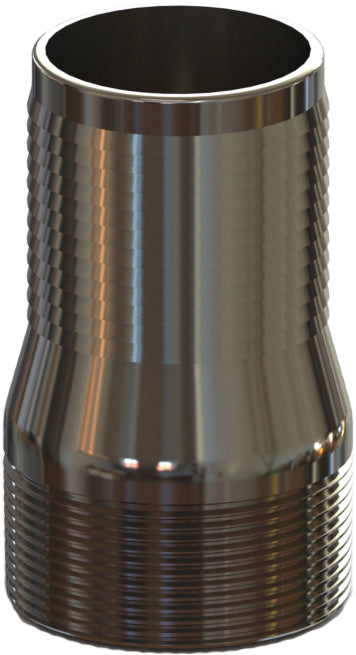

HAPS-20 by Campbell Fittings | Threaded Combination Nipple | 5" Male NPT Thread x 5" Hose Barb | Plated Steel

HAPS-20 by Campbell Fittings | Threaded Combination Nipple | 5" Male NPT Thread x 5" Hose Barb | Plated Steel

Save $51.34 Save $51.34
$128.35
$128.35 - $128.35
$128.35
$77.01
$77.01 - $77.01
$77.01

by Campbell
Combination Nipples & Menders:HAPS Threaded Combination Nipple
Specifications for Variant SKU: HAPS-20 Campbell Fittings
Series: HAPS Series
Shape (Orientation): Straight
Ends Configuration: 5in Male NPT, 5in Hose Barb
Material(s): Plated Steel
Recommended Use:
  • Liquid, bulk handling, low pressure air
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation
Part Number Hose Size
HAPS-2 1/2"
HAPS-3 3/4"
HAPS-4 1"
HAPS-5 1-1/4"
HAPS-6 1-1/2"
HAPS-8 2"
HAPS-10 2-1/2"
HAPS-12 3"
HAPS-16 4"
HAPS-20 5"
HAPS-24 6"
HAPS-32 8"
HAPS-40 10"
HAPS-48 12"
Campbell Fittings

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.

Shop Parts by Campbell Fittings
