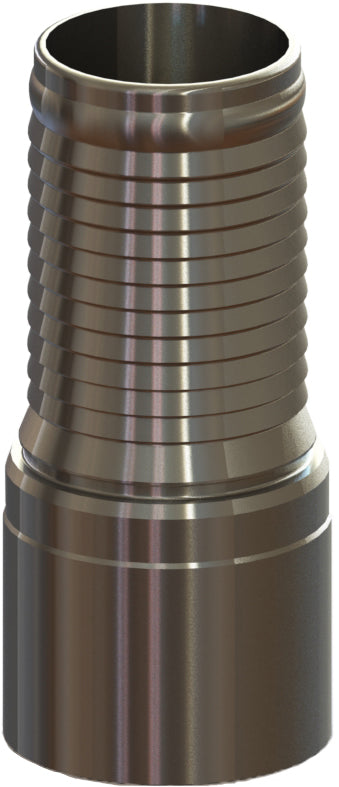

HASS-12C SQ by Campbell Fittings | Square Cut End | 3" Square Cut x 3" Hose Barb | 316 Stainless Steel

HASS-12C SQ by Campbell Fittings | Square Cut End | 3" Square Cut x 3" Hose Barb | 316 Stainless Steel

Save $28.67 Save $28.67
$150.34
$150.34 - $150.34
$150.34
$121.67
$121.67 - $121.67
$121.67

by Campbell
Crimpnology Nipples:HASS SQ Square Cut End
Specifications for Variant SKU: HASS-12C SQ Campbell Fittings
Series: HASS SQ Series
Shape (Orientation): Straight
Ends Configuration: 3in Weld End, 3in Hose Barb
Material(s): 316 Stainless Steel
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles
Special Features:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
  • Long Shank Crimpnology nipples provide excellent sealing and retention for high-pressure application (See ratings chart)
Part Number Hose Size
HASS-6C SQ 1-1/2"
HASS-8C SQ 2"
HASS-10C SQ 2-1/2"
HASS-12C SQ 3"
HASS-16C SQ 4"
HASS-24C SQ 6"
HASS-32C SQ 8"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
