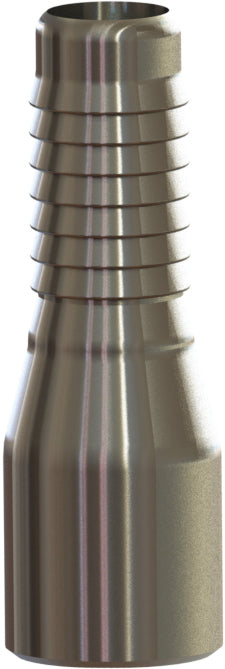

HASS-4 BV by Campbell Fittings | Beveled Combination Nipple | 1" Beveled End x 1" Hose Barb | 316 Stainless Steel

HASS-4 BV by Campbell Fittings | Beveled Combination Nipple | 1" Beveled End x 1" Hose Barb | 316 Stainless Steel

Save $14.07 Save $14.07
$35.17
$35.17 - $35.17
$35.17
$21.10
$21.10 - $21.10
$21.10

by Campbell
Combination Nipples & Menders:HASS BV Beveled Combination Nipple
Specifications for Variant SKU: HASS-4 BV Campbell Fittings
Series: HASS BV Series
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Hose Barb
Material(s): 316 Stainless Steel
Recommended Use:
  • Liquid, bulk handling, low pressure air
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation
Part Number Hose Size
HASS-2 BV 1/2"
HASS-3 BV 3/4"
HASS-4 BV 1"
HASS-5 BV 1-1/4"
HASS-6 BV 1-1/2"
HASS-8 BV 2"
HASS-10 BV 2-1/2"
HASS-12 BV 3"
HASS-16 BV 4"
HASS-20 BV 5"
HASS-24 BV 6"
HASS-32 BV 8"
HASS-40 BV 10"
HASS-48 BV 12"
Campbell Fittings

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
