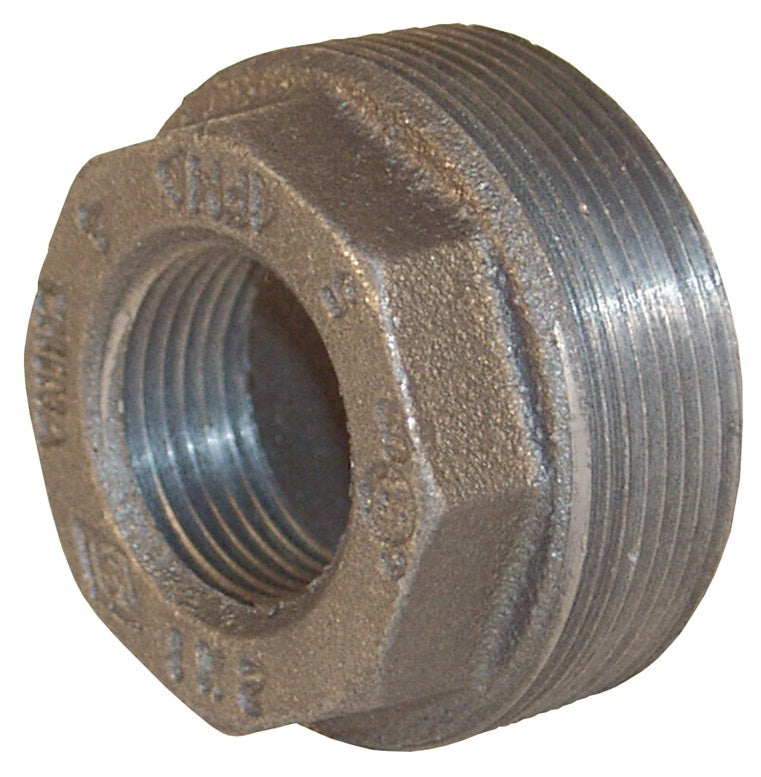

HB1025 by Dixon Valve | Reducer Hex Bushing | 1" Male NPT x 1/4" Female NPT | 150# Iron

HB1025 by Dixon Valve | Reducer Hex Bushing | 1" Male NPT x 1/4" Female NPT | 150# Iron

Save $3.86 Save $3.86
$9.65
$9.65 - $9.65
$9.65
$5.79
$5.79 - $5.79
$5.79

Dixon Valve
Reducer Hex Bushing | Male NPT x Female NPT
Specifications for Variant SKU: HB1025 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Male NPT, 1/4in Female NPT
Material(s): Iron
150# Iron
Part Number		 150# Galvanized Iron
Part Number		 150# 316 Stainless Steel
Part Number		 3000# Forged Steel
Part Number		 125# Brass
Part Number		 Male NPT Female NPT
HB2518 HB2518G HB2518SS HB2518FS - 1/4" 1/8"
HB3818 - - - - 3/8" 1/8"
HB3825 HB3825G HB3825SS HB3825FS - 3/8" 1/4"
HB5018 - - - - 1/2" 1/8"
HB5025 HB5025G HB5025SS HB5025FS - 1/2" 1/4"
HB5038 HB5038G HB5038SS HB5038FS - 1/2" 3/8"
HB7518 - - - - 3/4" 1/8"
HB7525 HB7525G HB7525SS HB7525FS - 3/4" 1/4"
HB7538 HB7538G HB7538SS HB7538FS - 3/4" 3/8"
HB7550 HB7550G HB7550SS HB7550FS - 3/4" 1/2"
HB1018 - - - - 1" 1/8"
HB1025 HB1025G HB1025SS HB1025FS - 1" 1/4"
HB1038 HB1038G HB1038SS HB1038FS - 1" 3/8"
HB1050 HB1050G HB1050SS HB1050FS - 1" 1/2"
HB1075 HB1075G HB1075SS HB1075FS - 1" 3/4"
HB1250 - - - - 1-1/4" 1/2"
HB1275 - HB1275SS HB1275FS - 1-1/4" 3/4"
HB1210 HB1210G HB1210SS HB1210FS HB1210B 1-1/4" 1"
HB1550 - - - - 1-1/2" 1/2"
HB1575 HB1575G HB1575SS HB1575FS HB1575B 1-1/2" 3/4"
HB1510 HB1510G HB1510SS HB1510FS HB1510B 1-1/2" 1"
HB1512 HB1512G HB1512SS HB1512FS HB1512B 1-1/2" 1-1/4"
HB2050 HB2050G - - HB2050B 2" 1/2"
HB2075 HB2075G HB2075SS HB2075FS HB2075B 2" 3/4"
HB2010 HB2010G HB2010SS HB2010FS HB2010B 2" 1"
HB2012 HB2012G HB2012SS HB2012FS HB2012B 2" 1-1/4"
HB2015 HB2015G HB2015SS - HB2015B 2" 1-1/2"
HB2515 - - HB2015FS HB2515B 2-1/2" 1-1/2"
HB2520 HB2520G HB2520SS HB2520FS HB2520B 2-1/2" 2"
HB3010 - - - - 3" 1"
HB3015 - - - - 3" 1-1/2"
HB3020 HB3020G HB3020SS HB3020FS HB3020B 3" 2"
HB3025 - HB3025SS HB3025FS HB3025B 3" 2-1/2"
HB4010 - - - - 4" 1"
HB4015 - - - - 4" 1-1/2"
HB4020 HB4020G HB4020SS - HB4020B 4" 2"
HB4025 - - - - 4" 2-1/2"
HB4030 HB4030G HB4030SS HB4030FS HB4030B 4" 3"
HB5040 - - - - 5" 4"
HB6030 - - - - 6" 3"
HB6040 - - - - 6" 4"
