HBCP7 by Strapbinder | Center Punch Clamp | 1-3/4" ID | 5/8" Width | .027" Thickness | Galvanized Carbon Steel | Box of 100

HBCP7 by Strapbinder | Center Punch Clamp | 1-3/4" ID | 5/8" Width | .027" Thickness | Galvanized Carbon Steel | Box of 100

Save $2.73 Save $2.73
$75.08
$75.08 - $75.08
$75.08
$72.35
$72.35 - $72.35
$72.35

by Strapbinder

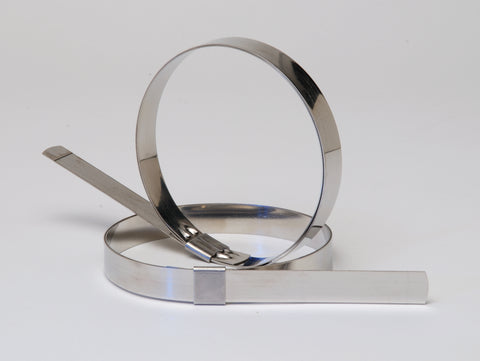

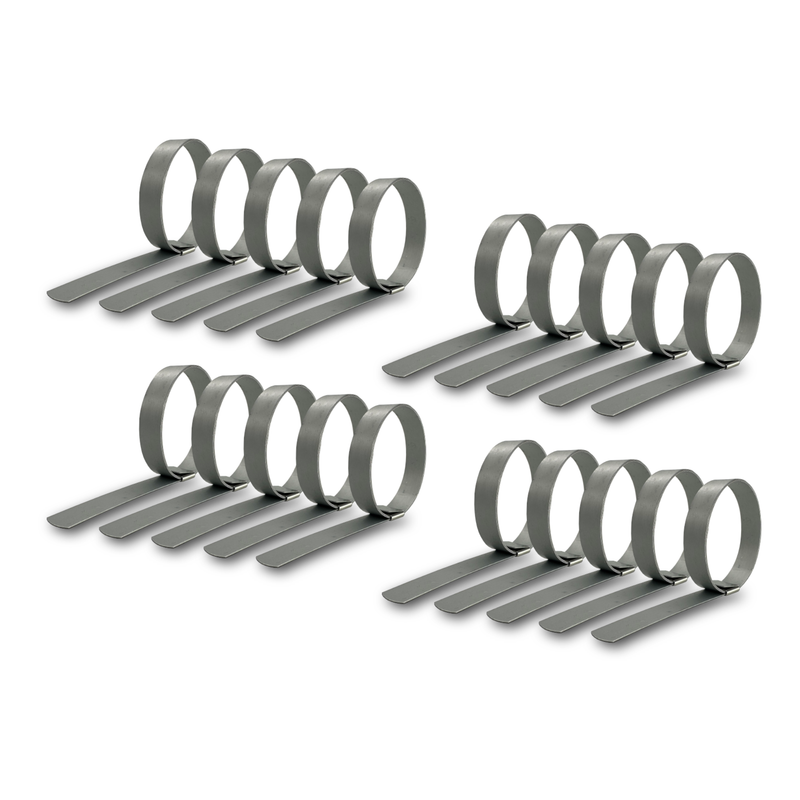

Preformed Hose Clamps:Galvanized Carbon Steel Center Punch Clamp

Under conditions of high corrosion, we recommend the stainless steel clamp.

Double wrapped and locked with the conical punch of the HBC300 Tensioning Tool.

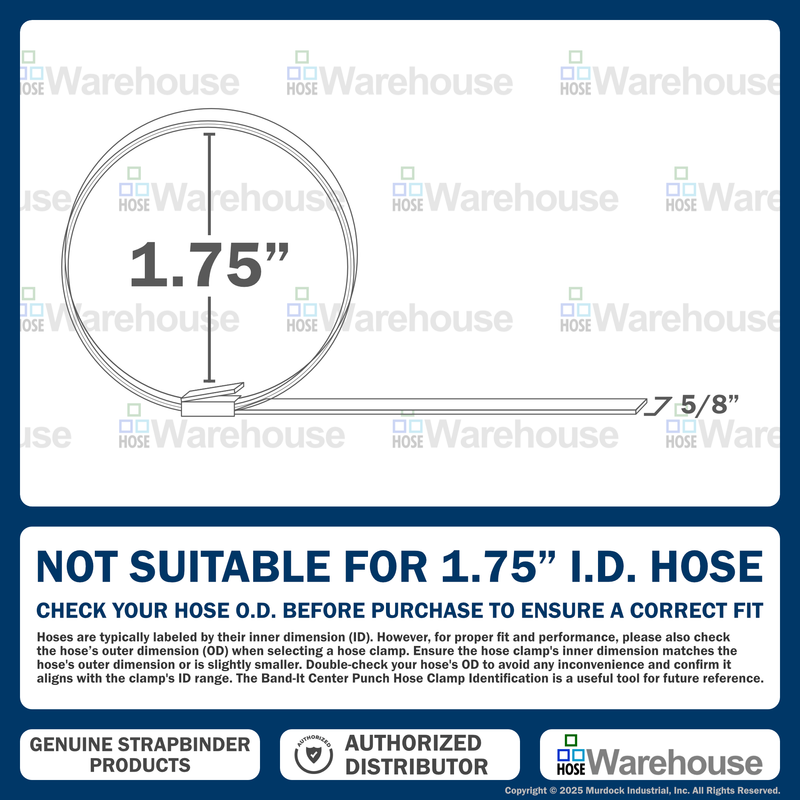

Measure the outside diameter of the hose with the fitting inserted to figure out what size clamp you would need.

Package Quantity: 100 EA

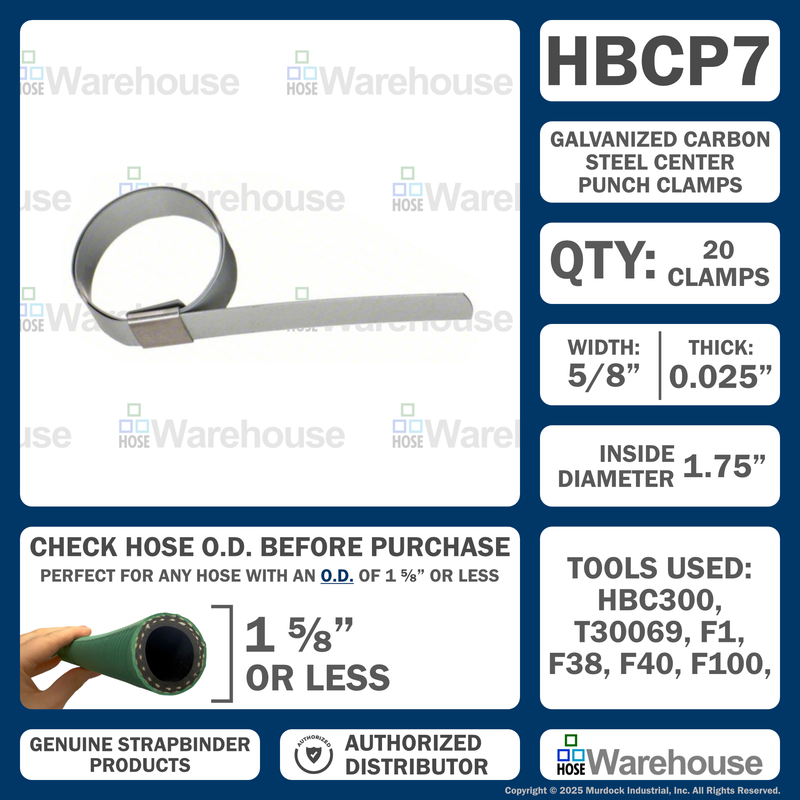

Specifications for Variant SKU: HBCP7 Strapbinder | 100 |
Material(s): Galvanized Carbon Steel
Special Properties: Heavy Duty
Clamp Thickness: .027
Clamp Width: 5/8
Minimum Clamp I.D.: 1-3/4
Features:
  • Under conditions of high corrosion, we recommend the stainless steel clamp.
  • To order the proper size clamp, measure the outside diameter of the hose with the fitting inserted.
  • Select the next larger inside diameter clamp by Item #.5/8" Wide Clamp - .027" Thick.
Part Number Clamp ID Band Width Band Thickness Material Weight
HBCP3S 13/16" 3/8" .025" 201 Stainless Steel 3.60 lbs
HBCP311S 1-3/16" 3/8" .025" 201 Stainless Steel 4.60 lbs
HBCP4S 1" 5/8" .025" 201 Stainless Steel 8.30 lbs
HBCP5S 1-1/4" 5/8" .025" 201 Stainless Steel 8.70 lbs
HBCP6S 1-1/2" 5/8" .025" 201 Stainless Steel 9.70 lbs
HBCP7S 1-3/4" 5/8" .025" 201 Stainless Steel 10.60 lbs
HBCP8S 2" 5/8" .025" 201 Stainless Steel 11..5 lbs
HBCP9S 2-1/4" 5/8" .025" 201 Stainless Steel 12.60 lbs
HBCP10S 2-1/2" 5/8" .025" 201 Stainless Steel 6.80 lbs
HBCP11S 2-3/4" 5/8" .025" 201 Stainless Steel 7.30 lbs
HBCP12S 3" 5/8" .025" 201 Stainless Steel 7.70 lbs
HBCP14S 3-1/2" 5/8" .025" 201 Stainless Steel 8.70 lbs
HBCP16S 4" 5/8" .025" 201 Stainless Steel 4.90 lbs
HBCP18S 4-1/2" 5/8" .025" 201 Stainless Steel 5.50 lbs
HBCP20S 5" 5/8" .025" 201 Stainless Steel 5.90 lbs
HBCP24S 6" 5/8" .025" 201 Stainless Steel 6.80 lbs
HBCP28S 7" 5/8" .025" 201 Stainless Steel 7.40 lbs
HBCP32S 8" 5/8" .025" 201 Stainless Steel 8.20 lbs
HBCP3 13/16" 3/8" .025" Galvanized Carbon Steel 3.60 lbs
HBCP311 1-3/16" 3/8" .025" Galvanized Carbon Steel 4.60 lbs
HBCP4 1" 5/8" .025" Galvanized Carbon Steel 8.30 lbs
HBCP5 1-1/4" 5/8" .025" Galvanized Carbon Steel 8.70 lbs
HBCP6 1-1/2" 5/8" .025" Galvanized Carbon Steel 9.70 lbs
HBCP7 1-3/4" 5/8" .025" Galvanized Carbon Steel 10.60 lbs
HBCP8 2" 5/8" .025" Galvanized Carbon Steel 11..5 lbs
HBCP9 2-1/4" 5/8" .025" Galvanized Carbon Steel 12.60 lbs
HBCP10 2-1/2" 5/8" .025" Galvanized Carbon Steel 6.80 lbs
HBCP11 2-3/4" 5/8" .025" Galvanized Carbon Steel 7.30 lbs
HBCP12 3" 5/8" .025" Galvanized Carbon Steel 7.70 lbs
HBCP14 3-1/2" 5/8" .025" Galvanized Carbon Steel 8.70 lbs
HBCP16 4" 5/8" .025" Galvanized Carbon Steel 4.90 lbs
HBCP18 4-1/2" 5/8" .025" Galvanized Carbon Steel 5.50 lbs
HBCP20 5" 5/8" .025" Galvanized Carbon Steel 5.90 lbs
HBCP24 6" 5/8" .025" Galvanized Carbon Steel 6.80 lbs
HBCP28 7" 5/8" .025" Galvanized Carbon Steel 7.40 lbs
HBCP32 8" 5/8" .025" Galvanized Carbon Steel 8.20 lbs
