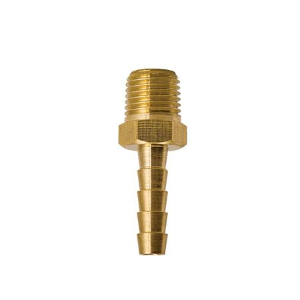

HBM-5-1 Breco by Foster | Hose Barb Fitting | 5/16" Hose Barb x 1/8" Male NPT Thread | Straight | Brass

HBM-5-1 Breco by Foster | Hose Barb Fitting | 5/16" Hose Barb x 1/8" Male NPT Thread | Straight | Brass

Save $1.81 Save $1.81
$4.52
$4.52 - $4.52
$4.52
$2.71
$2.71 - $2.71
$2.71

Foster Hose Barb Fittings - Male Pipe Thread Hose Barb - Breco
Specifications for Variant SKU: HBM-5-1 ZSi-Foster
Brand: Breco
Shape (Orientation): Straight
Material(s): Brass
Applications:
  • For shop air, pneumatic tools, petroleum base hydraulic oils, anti-freeze compounds, gasoline, water, lubricating oils and diesel fuels.
Features:
  • "Push-On" hose used with standard barbed fittings requires hose clamp.
  • Temperature range: -40 deg. F to +212 deg. F.
Part Number Brand Male NPT x I.D.
M1 Foster 1/8" x 1/8"
HBM-1-1 Breco 1/8" x 1/8"
M2 Foster 1/8" x 3/16"
HBM-25-1 Breco 1/8" x 3/16"
M3 Foster 1/8" x 1/4"
HBM-2-1 Breco 1/8" x 1/3"
M4 Foster 1/8" x 5/16"
M5 Foster 1/8" x 3/8"
HBM-3-1 Breco 1/8" x 3/8"
M6 Foster 1/4" x 3/16"
M7 Foster 1/4" x 1/4"
HBM-2-2 Breco 1/4" x 1/4"
M8 Foster 1/4" x 5/16"
HBM-5-3 Breco 1/4" x 5/16"
M9 Foster 1/4" x 3/8"
HBM-3-2 Breco 1/4" x 3/8"
M11 Foster 1/4" x 1/2"
HBM-4-2 Breco 1/4" x 1/2"
M12 Foster 3/8" x 1/4"
HBM-2-3 Breco 3/8" x 1/4"
HBM-5-1 Breco 1/8" x 5/16"
M13 Foster 3/8" x 3/8"
HBM-3-3 Breco 3/8" x 3/8"
M14 Foster 3/8" x 1/2"
HBM-4-3 Breco 3/8" x 1/2"
M16 Foster 1/2" x 3/8"
HBM-3-4 Breco 1/2" x 3/8"
M17 Foster 1/2" x 1/2"
HBM-4-4 Breco 1/2" x 1/2"
HBM-4-6 Breco 3/4" x 1/2"
HBM-7-4 Breco 1/2" x 5/8"
M19 Foster 1/2" x 3/4"
HBM-6-4 Breco 1/4" x 3/4"
M22 Foster 3/4" x 3/4"
HBM-6-6 Breco 3/8" x 3/4"
HBM-8-6 Breco 3/4" x 1"
HBM-8-8 Breco 1" x 1"

Requires Hose Clamp
