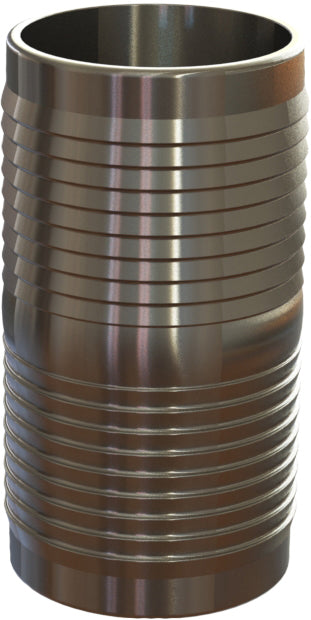

HCSS-24 by Campbell Fittings | Mender | 6" Hose Barb x 6" Hose Barb | 316 Stainless Steel

HCSS-24 by Campbell Fittings | Mender | 6" Hose Barb x 6" Hose Barb | 316 Stainless Steel

Save $474.89 Save $474.89
$1,187.23
$1,187.23 - $1,187.23
$1,187.23
$712.34
$712.34 - $712.34
$712.34

by Campbell
Combination Nipples & Menders:HCSS Expander Nipple
Specifications for Variant SKU: HCSS-24 Campbell Fittings
Series: HCSS Series
Shape (Orientation): Straight
Ends Configuration: 6in, 6in, Some Ends Match
Material(s): 316 Stainless Steel
Recommended Use:
  • Liquid, bulk handling, low pressure air
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation
Part Number Hose Size
HCSS-3 3/4"
HCSS-4 1"
HCSS-5 1-1/4"
HCSS-6 1-1/2"
HCSS-8 2"
HCSS-12 3"
HCSS-16 4"
HCSS-24 6"
Campbell Fittings

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
