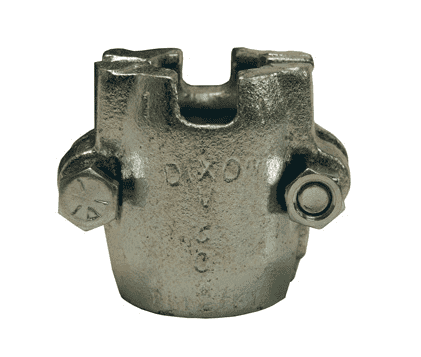

HD1-8 Dixon Plated Iron Hydraulic Hose Coupling Clamp - 1" Hose ID - Hose OD Range: 1-29/64" to 1-35/64"

HD1-8 Dixon Valve Plated Iron Hydraulic Hose Coupling Clamp - 1" Hose ID - Hose OD Range: 1-29/64" to 1-35/64"

Save $1.36 Save $1.36
$20.40
$20.40 - $20.40
$20.40
$19.04
$19.04 - $19.04
$19.04

Hydraulic Hose Couplings - Clamps for 1 Wire Hydraulic Hoses - Plated Iron
Specifications for Variant SKU: HD1-8 Dixon
Shape (Orientation): Straight
Material(s): Plated Iron
Minimum Clamp I.D.: 1.453125
Maximum Clamp I.D.: 1.546875
Features:
  • For use only on 1 wire hydraulic hoses.
Part Number Hose ID Hose OD Range Torque in ft. lbs. Weight (Lbs.)
From: To:
HD1-3 3/8" 48/64" 50/64" 12 0.3095
HD1-4 1/2" 56/64" 60/64" 18 0.3800
HD1-6 3/4" 1-10/64" 1-14/64" 18 0.5200
HD1-8 1" 1-29/64" 1-35/64" 36 1.0600
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
