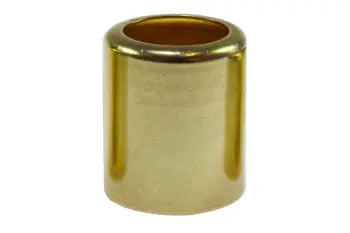

HF7328 by Coilhose | Hose Ferrules | 0.656" ID | 1" Length | Brass | Pack of 25

HF7328 by Coilhose | Hose Ferrules | 0.656" ID | 1" Length | Brass | Pack of 25

Save $2.54 Save $2.54
$22.87
$22.87 - $22.87
$22.87
$20.33
$20.33 - $20.33
$20.33
Coilhose Pneumatics - Brass Hose Ferrules

Package Quantity: 25 Pack

Specifications for Variant SKU: HF7328 Coilhose | 25 |
Material(s): Brass
Overview:
  • Once crimped, the hose ferrules provide a permanent clamping force on both the hose and fitting.
  • To select the appropriate ferrule, match the I.D. of the ferrule to the O.D. of the hose with the installed fitting.
Install with:

Part No Hose Outside Diameter Length Reference
HF3588 0.562" 3/4" -
HF7244 0.875" 7/8" H12
HF5029 0.900" 7/8" R12
HF7322 0.500" 1" -
HF7323 0.525" 1" TP4
HF7325 0.568" 1" R14, H14
HF7326 0.593" 1" -
HF7327 0.625" 1" -
HF7328 0.656" 1" R516,H516
HF7329 0.687" 1" H38, TP6
HF7330 0.718" 1" R38
HF7331 0.750" 1" -
HF7332 0.781" 1" TP8
HF7333 0.812" 1" -
