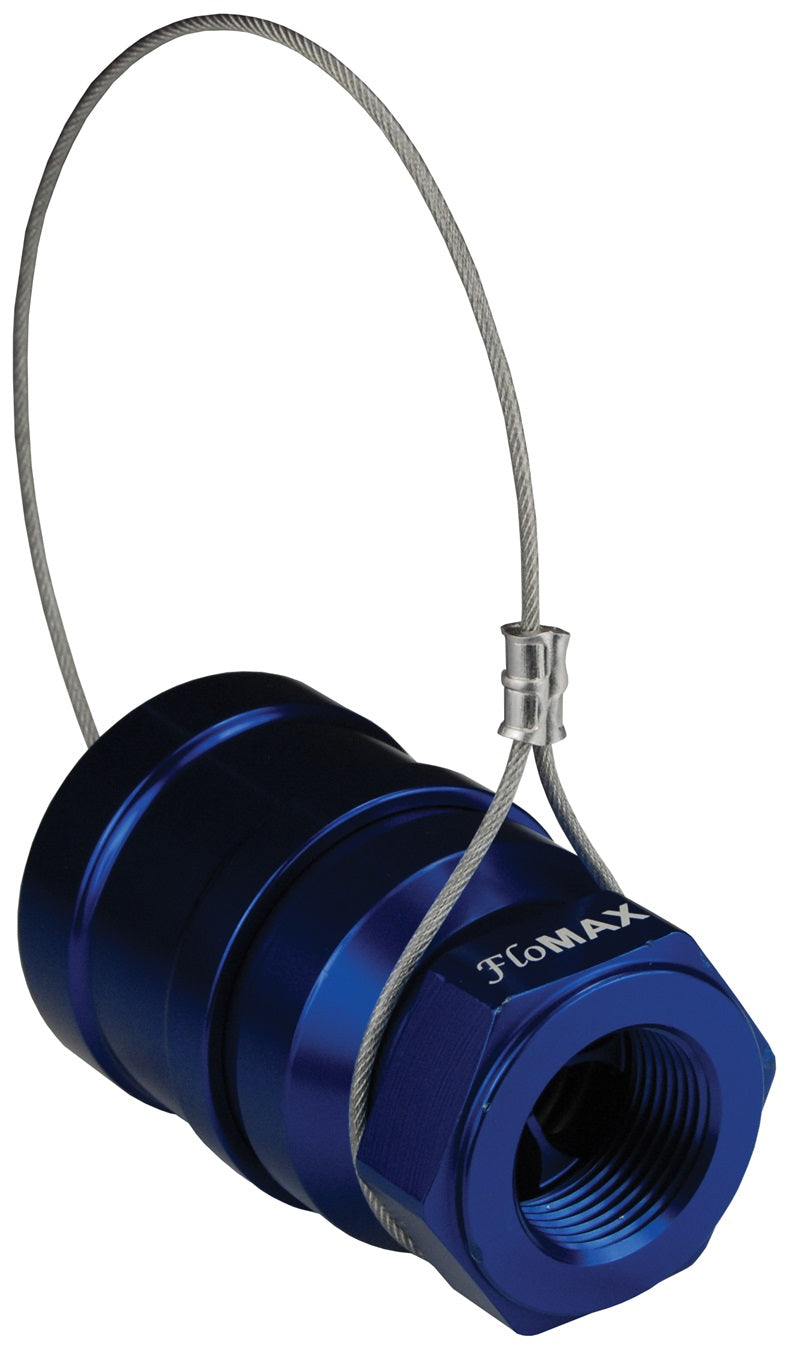

HFN-P5 by Dixon Valve | FloMAX High Flow 1"-Series | Nozzle with Plug | 1" Female NPT | Navy | Anodized Aluminum

Save $52.49

$472.42

$472.42 - $472.42

$472.42

$419.93

$419.93 - $419.93

$419.93

Dixon Valve
FloMAX High Flow 1" Series | Nozzle

Nozzle and receiver sets are color coded for quick identification of mating parts.

Each color nozzle and receiver will only couple with their matching color component, providing complete protection against cross contamination.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: HFN-P5 Dixon
Brand:	FloMAX
Series:	HFN-P Series
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT
Material(s):	Anodized Aluminum, Stainless Steel

Features:
The nozzle/receiver combination has a flow area equivalent to a 1" schedule 80 pipe. Nozzle incorporates a "ball lock" mechanism to ensure smooth and reliable operation.
Construction:
All wear parts are constructed of stainless steel for long life and corrosion resistance. All non-wear parts are constructed of colored anodized aircraft grade aluminum for high strength, lightweight and corrosion resistance.
Specifications:
Length: nozzle 3.90" (99 mm), receiver 3.44" (87 mm) Nozzle and receiver coupled length: 5.44" (138 mm) Diameter: 2.50" (64 mm) Hex size: 2" (51 mm) Working pressure: 500 PSI with burst pressure: 1500 PSI.

FloMAX High Flow 1" Series Nozzles
Part Number	Description	Female Thread
HFN-P1	Red Nozzle with Plug	1" Female NPT
HFN-P2	Gold Nozzle with Plug	1" Female NPT
HFN-P3	Teal Nozzle with Plug	1" Female NPT
HFN-P4	Violet/Purple Nozzle with Plug	1" Female NPT
HFN-P5	Navy Nozzle with Plug	1" Female NPT
HFN-P6	Copper Nozzle with Plug	1" Female NPT
HFN-P7	Blue/Gray Nozzle with Plug	1" Female NPT

FloMAX High Flow 1" Series Receivers
Part Number	Description	Male Thread
HFR-C1	Red Receiver with Cap	1" Male NPT
HFR-C2	Gold Receiver with Cap	1" Male NPT
HFN-C3	Teal/Blue Receiver with Cap	1" Male NPT
HFR-C4	Violet/Purple Receiver with Cap	1" Male NPT
HFR-C5	Navy Receiver with Cap	1" Male NPT
HFN-C6	Copper Receiver with Cap	1" Male NPT
HFR-C7	Blue/Gray Receiver with Cap	1" Male NPT

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
