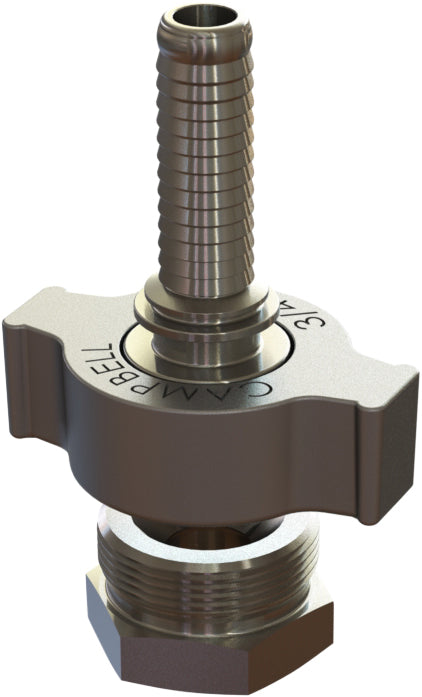

HJF-3 by Campbell Fittings | Female Set w/ Wing Nut | 3/4" Female NPT Thread x 3/4" Hose Barb | Straight | Steel/Ductile Iron

HJF-3 by Campbell Fittings | Female Set w/ Wing Nut | 3/4" Female NPT Thread x 3/4" Hose Barb | Straight | Steel/Ductile Iron

Save $13.62 Save $13.62
$70.11
$70.11 - $70.11
$70.11
$56.49
$56.49 - $56.49
$56.49

by Campbell
Heavy Duty VITON® Seal Air Hammer Couplings:VITON® Seal Female Set (with wing nut)
Specifications for Variant SKU: HJF-3 Campbell Fittings
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPT, 3/4in Hose Barb
Material(s): Ductile Iron, Steel
Recommended Use:
  • High-pressure steam and air
Recommended Hose Attachments:
  • Interlocking Ferrules
  • Interlocking U-bolt clamps
Features and Benefits:
  • Eliminates leaks with nut hand tightened.
  • Viton seal (formulated by DuPont for high pressure steam and air applications) is protected inside machined stem groove and by swivel nut, extending working life.
  • Spud does not contain plastic seat, extending working life.
  • Interchangeable with old-style domestic ground joint couplings.
  • Machined hose ends with smooth end detail to reduce potential failure due to abrasion - grips, seals, and protects hose.
  • Interlock groove locks ferrule into place for superior holding power.
  • Crimped assemblies are low profile and eliminate sharp edges from bolts.
Part Number Size
HJF-3 3/4"
HJF-4 1"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
