HP3PB37F Hansen® by Danfoss | Quick Disconnect Coupling | HP3 Series | 3/8" Female NPT x 3/8" High Pressure | Plug | NBR Seal | Steel
HP3PB37F Hansen® by Danfoss | Quick Disconnect Coupling | HP3 Series | 3/8" Female NPT x 3/8" High Pressure | Plug | NBR Seal | Steel
HP3PB37F Hansen® by Danfoss | Quick Disconnect Coupling | HP3 Series | 3/8" Female NPT x 3/8" High Pressure | Plug | NBR Seal | Steel
HP3PB37F Hansen® by Danfoss | Quick Disconnect Coupling | HP3 Series | 3/8" Female NPT x 3/8" High Pressure | Plug | NBR Seal | Steel
HP3PB37F Hansen® by Danfoss | Quick Disconnect Coupling | HP3 Series | 3/8" Female NPT x 3/8" High Pressure | Plug | NBR Seal | Steel

HP3PB37F Hansen® by Danfoss | Quick Disconnect Coupling | HP3 Series | 3/8" Female NPT x 3/8" High Pressure | Plug | NBR Seal | Steel

$20.84 - $20.84
$20.84
$20.84 - $20.84
$20.84

Hansen® by Danfoss
HP3 Series | High Pressure Application

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen HP3 Series Hydraulic Jack/Enerpac Interchange is designed for high-pressure applications up to 700 bar (10,000 psi).
Specifications for Variant SKU: HP3PB37F Danfoss
Brand: Hansen
Series: HP3 Series
Shape (Orientation): Straight
Material(s): Zink-Plated Carbon Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Thread together design.
  • 700 bar (10,000 psi) operating pressure.
  • Ball valve.
Applications & Markets:
  • Hydraulic jack
  • Portable hydraulic rams
Materials:
  • Standard body material: High resistance carbon steel with zinc trivalent chromat plating.
  • Standard seal materials: Nitrile (NBR).
Body Size Max. Operating Pressure (Static) Min. Burst Pressure Rated Flow
Connected Connected
3/8" 700 bar 10,000 psi 2200 bar 31,900 psi 23 lmp 6 gpm

* Connect and disconnect under pressure not allowed
Socket/Female (Figure 1)

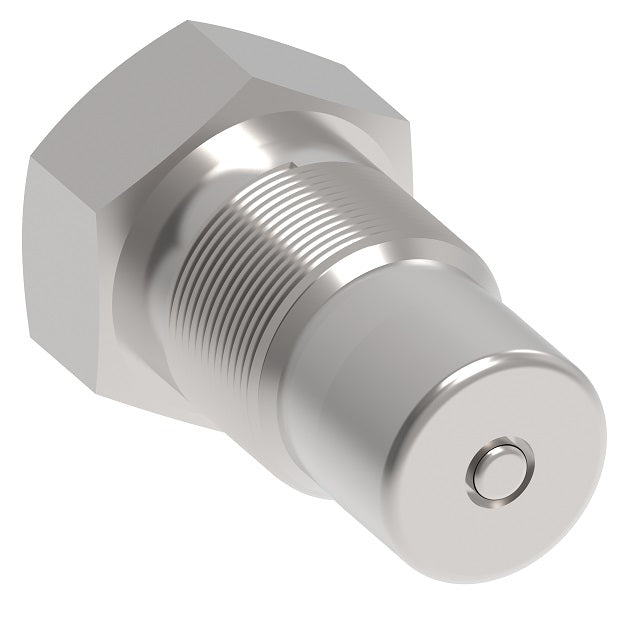

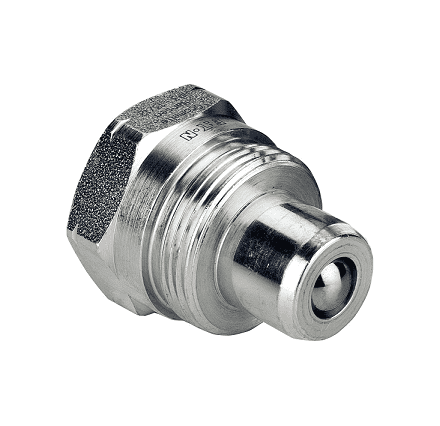

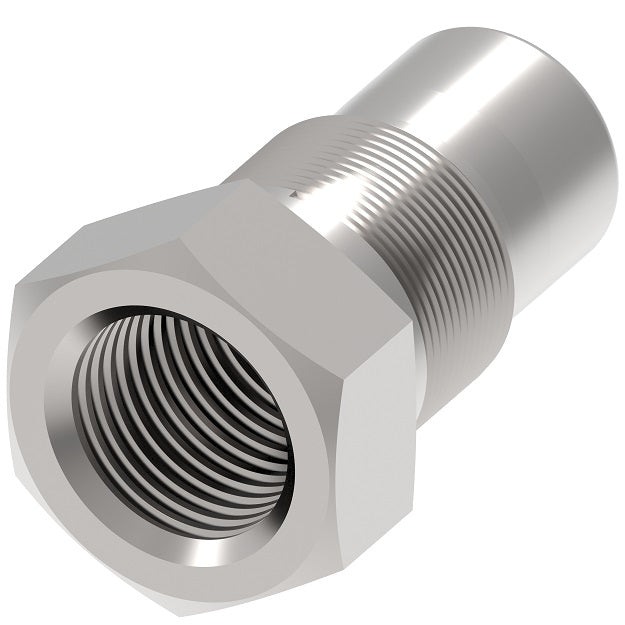

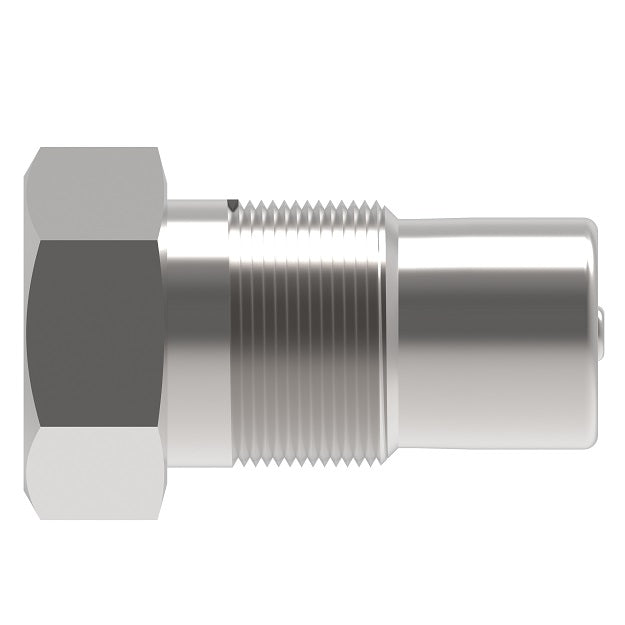

Plug/Male (Figure 2)
HP3 Series | High Pressure Application
Part Number Coupling
Type		 Body
Size		 Port
Size		 Thread Figure Dimensions Dust Plug/Cap
Part Number
NBR A B Hex
HP3SB37M Socket/Female 3/8" 3/8" 3/8-18 Male NPT 1 2.84"
(72.2mm)		 1.38"
(35.0mm)		 0.94"
(24mm)		 WA5612700
HP3PB37F Plug/Male 3/8" 3/8" 3/8-18 Female NPT 2 1.57"
(40.0mm)		 1.38"
(35.0mm)		 1.26"
(32mm)		 WA5612400
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
