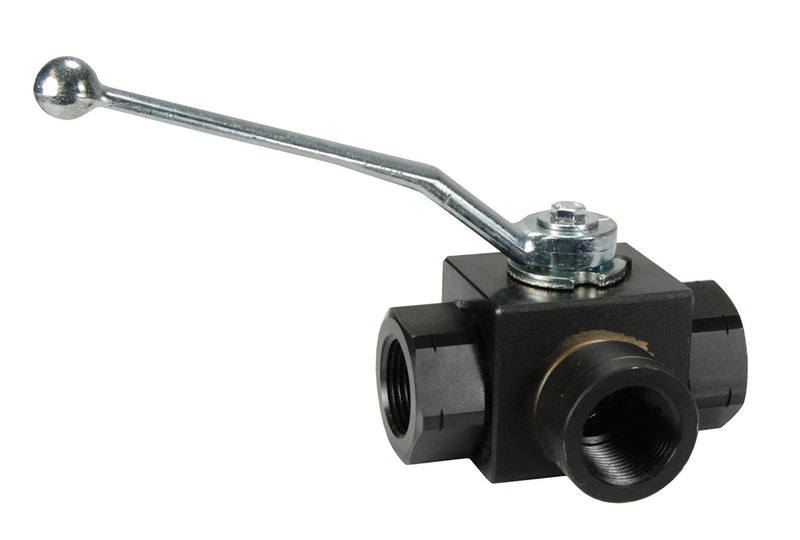

HPBV10-3WAY by Dixon Valve | High Pressure 3-Way Ball Valve | Full Bore | 1" Female NPT x 1" Female NPT x 1" Female NPT | Carbon Steel

Name: HPBV10-3WAY by Dixon Valve | High Pressure 3-Way Ball Valve | Full Bore | 1" Female NPT x 1" Female NPT x 1" Female NPT | Carbon Steel
Brand: Dixon
SKU: HPBV10-3WAY Dixon
Price: 134.61 USD
Availability: InStock

Save $16.83

$151.44

$151.44 - $151.44

$151.44

$134.61

$134.61 - $134.61

$134.61

Dixon Valve & Coupling
High Pressure 3-Way Ball Valve | Full Bore | Carbon Steel

Quantity

Specifications for Variant SKU: HPBV10-3WAY Dixon
Shape (Orientation):	Tee
Ends Configuration:	1in Female NPT, 1in Female NPT, 1in Female NPT, Some Ends Match
Material(s):	Carbon Steel
Seal Material(s):	FKM

Features:
Rugged construction. Black oxide coating.
Materials:
FKM seals. POM (polyacetal) ball seats. Nickel plated ball.
Specifications:
Temperature range: -20°F to 215° F (-29°C to 102°C)

Part Number	Female NPT	PSI
HPBV12-3WAY	1/2"	5145 PSI
HPBV34-3WAY	3/4"	5145 PSI
HPBV10-3WAY	1"	5145 PSI
