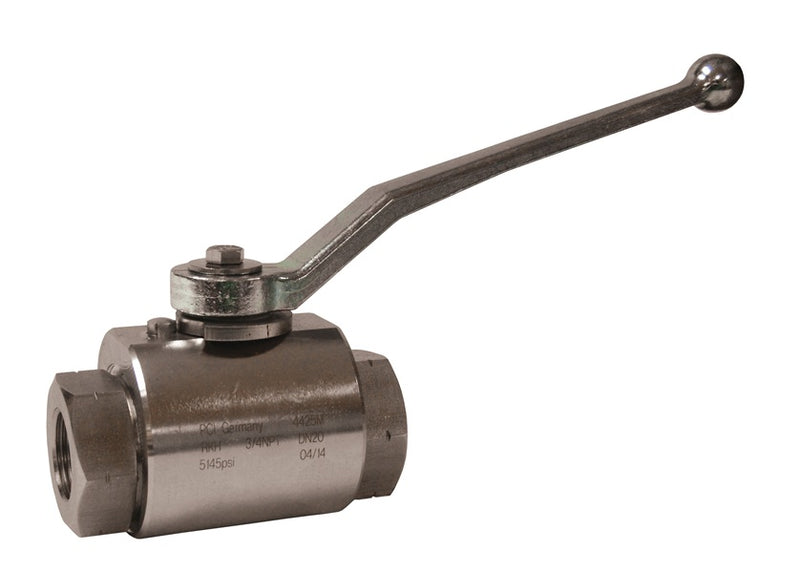

HPBV25SS by Dixon Valve | High Pressure Ball Valve | Full-Bore | 1/4" Female NPT x 1/4" Female NPT | 316 Stainless Steel

HPBV25SS by Dixon Valve | High Pressure Ball Valve | Full-Bore | 1/4" Female NPT x 1/4" Female NPT | 316 Stainless Steel

Save $34.21 Save $34.21
$307.89
$307.89 - $307.89
$307.89
$273.68
$273.68 - $273.68
$273.68

Dixon Valve & Coupling
High Pressure Ball Valve | Full-Bore
Specifications for Variant SKU: HPBV25SS Dixon
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s): 316 Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • Blow-out proof stem.
  • Rugged construction.
Materials:
  • FKM/FPM seals.
  • POM (Polyacetal) ball seats.
Part Number Material Thread Type Size PSI
HPBV25 Carbon Steel Female NPT x Female NPT 1/4" 7350 PSI
HPBV38 Carbon Steel Female NPT x Female NPT 3/8" 7350 PSI
HPBV12 Carbon Steel Female NPT x Female NPT 1/2" 7350 PSI
HPBV34 Carbon Steel Female NPT x Female NPT 3/4" 6000 PSI
HPBV10 Carbon Steel Female NPT x Female NPT 1" 6000 PSI
HPBV125 Carbon Steel Female NPT x Female NPT 1-1/4" 6000 PSI
HPBV150 Carbon Steel Female NPT x Female NPT 1-1/2" 6000 PSI
HPBV200 Carbon Steel Female NPT x Female NPT 2" 6000 PSI

HPBV25SAE Carbon Steel Female SAE ORB x Female SAE ORB 1/4" 7350 PSI
HPBV38SAE Carbon Steel Female SAE ORB x Female SAE ORB 3/8" 7350 PSI
HPBV12SAE Carbon Steel Female SAE ORB x Female SAE ORB 1/2" 7350 PSI
HPBV34SAE Carbon Steel Female SAE ORB x Female SAE ORB 3/4" 6000 PSI
HPBV10SAE Carbon Steel Female SAE ORB x Female SAE ORB 1" 6000 PSI
HPBV125SAE Carbon Steel Female SAE ORB x Female SAE ORB 1-1/4" 6000 PSI
HPBV200SAE Carbon Steel Female SAE ORB x Female SAE ORB 2" 6000 PSI

HPBV25SS 316 Stainless Steel Female NPT x Female NPT 1/4" 5880 PSI
HPBV38SS 316 Stainless Steel Female NPT x Female NPT 3/8" 5880 PSI
HPBV12SS 316 Stainless Steel Female NPT x Female NPT 1/2" 5880 PSI
HPBV34SS 316 Stainless Steel Female NPT x Female NPT 3/4" 5145 PSI
HPBV10SS 316 Stainless Steel Female NPT x Female NPT 1" 5145 PSI
