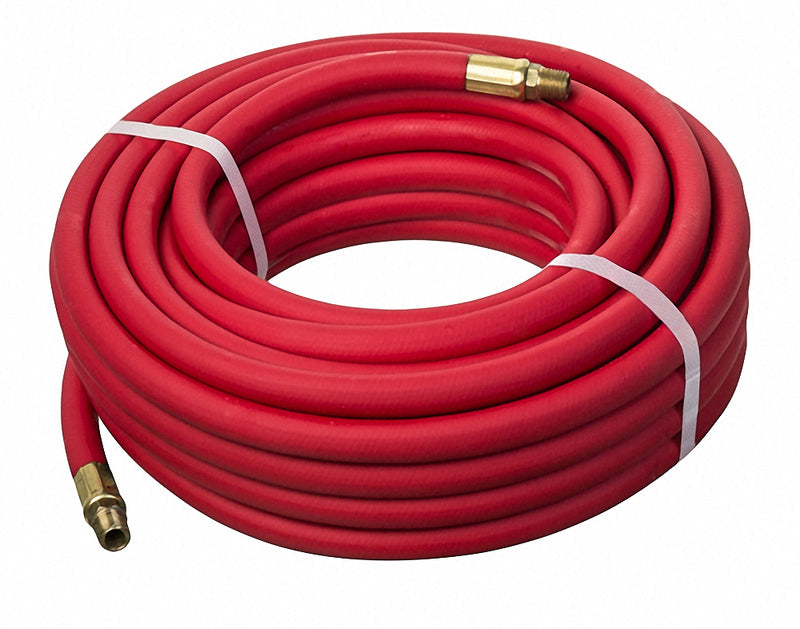

HS1134-05X25 Kuri-Tec by Kuriyama | POLYAIR® | HS1134 Series | Multi-Purpose Air Hose Assembly | 5/16" ID | 5/16" x 1/4" Male NPT | Red | 25ft Length

HS1134-05X25 Kuri-Tec by Kuriyama | POLYAIR® | HS1134 Series | Multi-Purpose Air Hose Assembly | 5/16" ID | 5/16" x 1/4" Male NPT | Red | 25ft Length

Save $16.56 Save $16.56
$40.16
$40.16 - $40.16
$40.16
$23.60
$23.60 - $23.60
$23.60

Kuri Tec® by Kuriyama
POLYAIR® | HS1134 Series | Multi-Purpose Air Hose Assembly
Specifications for Variant SKU: HS1134-05X25 Kuriyama
Brand: POLYAIR, Kuri Tec
Series: HS1134 Series
Hose Color(s): Red
Internal Diameter: 0.31in
Outer Diameter: 0.625in
Tubing Construction: PVC
Cover Construction: PVC
Shape (Orientation): Straight
Ends Configuration: 5/16in Male NPT, 1/4in Male NPT
Material(s): Brass

SPECIFICATIONS

Applications: Air Applications
Tube: PVC Reinforcement: -
Cover: PVC Service Temperature Range: -40°F (-40°C) to +150°F (+65°C)
Specifications: Phthalate Free
Other Features:
  • Hose assemblies are furnished with brass fittings.
  • Phthalate Free.
    		•
    HS1131 Series | Yellow
    Part Number
    25ft    		 Part Number
    50ft    		 Part Number
    100ft    		 Nominal ID Nominal OD Fittings
    in in
    HS1131-04X25 HS1131-04X50 HS1131-04X100 1/4" 0.500" 1/4" x 1/4" Male NPT
    HS1131-06X25 HS1131-06X50 HS1131-06X100 3/8" 0.625" 3/8" x 1/4" Male NPT
    HS1131D-08X25 HS1131D-08X50 HS1131D-08X100 1/2" 0.813" 1/2" x 1/2" Male NPT
    HS1131E-12X25 HS1131E-12X50 HS1131E-12X100 3/4" 1.125" 3/4" x 3/4" Male NPT
    HS1131F-16X25 HS1131F-16X50 HS1131F-16X100 1" 1.406" 1" x 1" Male NPT
    HS1134 Series | Red
    Part Number
    25ft    		 Part Number
    50ft    		 Part Number
    100ft    		 Nominal ID Nominal OD Fittings
    in in
    HS1134-04X25 HS1134-04X50 HS1134-04X100 1/4" 0.500" 1/4" x 1/4" Male NPT
    HS1134-05X25 HS1134-05X50 HS1134-05X100 5/16" 0.625" 5/16" x 1/4" Male NPT
    HS1134-06X25 HS1134-06X50 HS1134-06X100 3/8" 0.625" 3/8" x 1/4" Male NPT
    HS1134D-08X25 HS1134D-08X50 HS1134D-08X100 1/2" 0.813" 1/2" x 1/2" Male NPT
    HS1134E-10X25 HS1134E-10X50 HS1134E-10X100 5/8" 0.906" 5/8" x 3/4" Male NPT
    HS1134E-12X25 HS1134E-12X50 HS1134E-12X100 3/4" 1.125" 3/4" x 3/4" Male NPT
    HS1134F-16X25 HS1134F-16X50 HS1134F-16X100 1" 1.406" 1" x 1" Male NPT
    HS1136 Series | Blue
    Part Number
    25ft    		 Part Number
    50ft    		 Part Number
    100ft    		 Nominal ID Nominal OD Fittings
    in in
    HS1136-04X25 HS1136-04X50 HS1136-04X100 1/4" 0.500" 1/4" x 1/4" Male NPT
    HS1136-06X25 HS1136-06X50 HS1136-06X100 3/8" 0.625" 3/8" x 1/4" Male NPT
    HS1136D-08X25 HS1136D-08X50 HS1136D-08X100 1/2" 0.813" 1/2" x 1/2" Male NPT
    HS1136E-12X25 HS1136E-12X50 HS1136E-12X100 3/4" 1.125" 3/4" x 3/4" Male NPT
    HS1136F-16X25 HS1136F-16X50 HS1136F-16X100 1" 1.406" 1" x 1" Male NPT
    HS1138 Series | Grey
    Part Number
    25ft    		 Part Number
    50ft    		 Part Number
    100ft    		 Nominal ID Nominal OD Fittings
    in in
    HS1138-04X25 HS1138-04X50 HS1138-04X100 1/4" 0.500" 1/4" x 1/4" Male NPT
    HS1138-06X25 HS1138-06X50 HS1138-06X100 3/8" 0.625" 3/8" x 1/4" Male NPT
    HS1138D-08X25 HS1138D-08X50 HS1138D-08X100 1/2" 0.813" 1/2" x 1/2" Male NPT
    HS1138E-12X25 HS1138E-12X50 HS1138E-12X100 3/4" 1.125" 3/4" x 3/4" Male NPT

    Kuriyama

    Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
