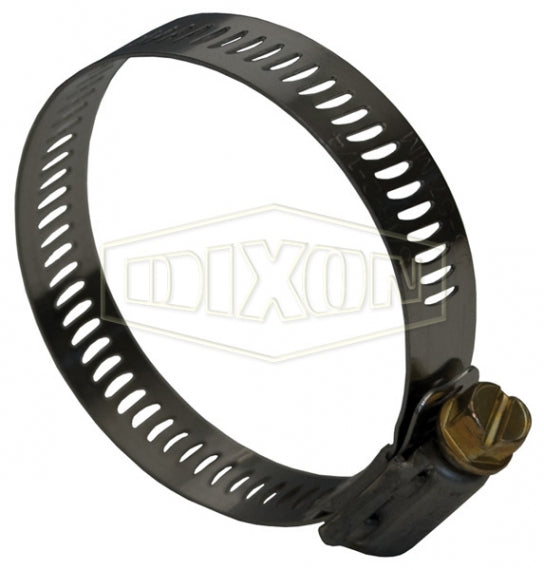

HS80 by Dixon Valve | Style HS | Worm Gear Clamp | 9/16" Band Width | Hose OD Range: from 2-1/2" to 5-1/2" | SAE 300 Stainless Steel Band | Zinc-Plated Steel Screw | Box of 10

Save $2.83

$25.50

$25.50 - $25.50

$25.50

$22.67

$22.67 - $22.67

$22.67

Dixon Valve
Worm Gear Clamps | Style HS

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: HS80 Dixon \| 10 \|
Series:	Style HS
Material(s):	300 Stainless Steel, Zinc-Plated Steel
Clamp Width:	0.5625
Minimum Clamp I.D.:	2.5
Maximum Clamp I.D.:	5.5

Features:
Four-piece construction Maximum recommended torque 50 in. lbs Screw design: 5/16" slotted hex head
Materials:
Style HS Band and housing: SAE 300-series stainless. Screw: SAE 1018 case-hardened, hex-free chrome zinc-plated steel. Style HSS Band and housing: SAE 300-series stainless. Screw: SAE 300-series stainless.
Approval:
Clamp meets SAEJ1508 which supercedes Mil Spec WW-C-440B.

Style HS Part Number	Style HSS Part Number	Band Width	Hose OD
Style HS Part Number	Style HSS Part Number	Band Width	From	To
HS6	HSS6	1/2"	7/16"	25/32"
HS8	HSS8	1/2"	1/2"	29/32"
HS10	HSS10	1/2"	9/16"	1-1/16"
HS12	HSS12	1/2"	11/16"	1-1/14"
HS16	HSS16	1/2"	13/16"	1-1/2"
HS20	HSS20	1/2"	13/16"	1-3/4"
HS24	HSS24	1/2"	1-1/16"	2"
HS28	HSS28	1/2"	1-5/16"	2-1/4"
HS32	HSS32	1/2"	1-9/16"	2-1/2"
HS36	HSS36	1/2"	1-13/16"	2-3/4"
HS40	HSS40	1/2"	2-1/16"	3"
HS44	HSS44	1/2"	2-5/16"	3-1/4"
HS48	HSS48	1/2"	2-9/16"	3-1/2"
HS52	HSS52	1/2"	2-13/16"	3-3/4"
HS56	HSS56	1/2"	3-1/16"	4"
HS60	HSS60	1/2"	3-5/16"	4-1/4"

HS64	HSS64	9/16"	3-9/16"	4-1/2"
HS72	HSS72	9/16"	1-7/8"	5"
HS80	HSS80	9/16"	2-1/2"	5-1/2"
HS88	HSS88	9/16"	3-1/8"	6"
HS96	HSS96	9/16"	3-5/8"	6-1/2"
HS104	HSS104	9/16"	4-1/8"	7"
HS128	HSS128	9/16"	5-5/8"	8-1/2"
HS152	HSS152	9/16"	7-1/8"	10"
HS188	HSS188	9/16"	9-3/8"	12-1/4"
HS200	HSS200	9/16"	10-1/8"	13"
HS212	HSS212	9/16"	10-7/8"	13-3/4"
HS224	HSS224	9/16"	11-5/8"	14-1/2"
HS236	HSS236	9/16"	12-3/8"	15-1/4"
HS248	HSS248	9/16"	13-1/8"	16"
HS312	HSS312	9/16"	17-1/8"	20"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
