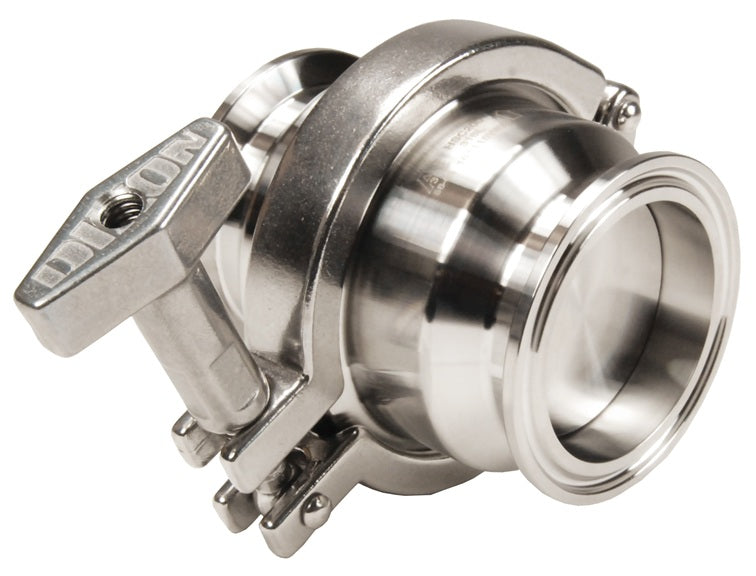

HSCE200500 Dixon Valve HSC Spring Check Valve - 2" Clamp Connection - EPDM Gasket - 316L Stainless Steel (5" Overall Length)

HSCE200500 Dixon Valve HSC Spring Check Valve - 2" Clamp Connection - EPDM Gasket - 316L Stainless Steel (5" Overall Length)

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings HSC Spring Check Valve - Clamp Connection - 316L Stainless Steel

Designed to prevent reverse flow. The concentric design makes them ideal for vertical applications.
Specifications for Variant SKU: HSCE200500 Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Features:
  • Machined from solid bar
  • Standard O-ring (EPDM) and gasket seal design
  • Can be serviced in field (no special tools required)
  • Finish: sanitary polish 32 Ra
  • Temperature Range: 15° F to 200° F
Part Number Size Cracking Pressure Max. Operating Pressure
HSCE050 1/2" 10.0 PSI 145 PSI
HSCE075 3/4" 4.0 PSI 145 PSI
HSCE100 1" 2.5 PSI 145 PSI
HSCE100500
(5" Overall Length)		 1" 2.5 PSI 145 PSI
HSCE150 1-1/2" 1.0 PSI 145 PSI
HSCE150500
(5" Overall Length)		 1-1/2" 1.0 PSI 145 PSI
HSCE200 2" 1.5 PSI 145 PSI
HSCE200500
(5" Overall Length)		 2" 1.5 PSI 145 PSI
HSCE250* 2-1/2" 0.8 PSI 145 PSI
HSCE300* 3" 0.5 PSI 145 PSI
HSCE400* 4" 0.4 PSI 145 PSI

* CF8M (plunger)
