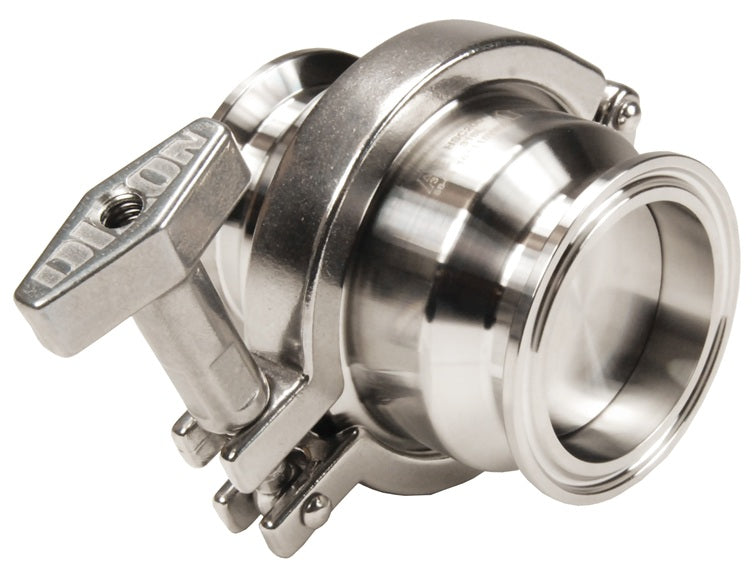

HSCE400BB Dixon Valve HSC Spring Check Valve - 4" Weld Connection - EPDM Gasket - 316L Stainless Steel

HSCE400BB Dixon Valve HSC Spring Check Valve - 4" Weld Connection - EPDM Gasket - 316L Stainless Steel

Save $326.81 Save $326.81
$817.02
$817.02 - $817.02
$817.02
$490.21
$490.21 - $490.21
$490.21

Dixon Sanitary Fittings HSC Spring Check Valve - Weld Connection - 316L Stainless Steel

Designed to prevent reverse flow. The concentric design makes them ideal for vertical applications.
Specifications for Variant SKU: HSCE400BB Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Weld End, 4in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Features:
  • Machined from solid bar
  • Standard O-ring (EPDM) and gasket seal design
  • Can be serviced in field (no special tools required)
  • Finish: sanitary polish 32 Ra
  • Temperature Range: 15° F to 200° F
Part Number Size Cracking Pressure Max. Operating Pressure
HSCE050BB 1/2" 10.0 PSI 145 PSI
HSCE075BB 3/4" 4.0 PSI 145 PSI
HSCE100BB 1" 2.5 PSI 145 PSI
HSCE150BB 1-1/2" 1.0 PSI 145 PSI
HSCE200BB 2" 1.5 PSI 145 PSI
HSCE250BB 2-1/2" 0.8 PSI 145 PSI
HSCE300BB 3" 0.5 PSI 145 PSI
HSCE400BB 4" 0.4 PSI 145 PSI
