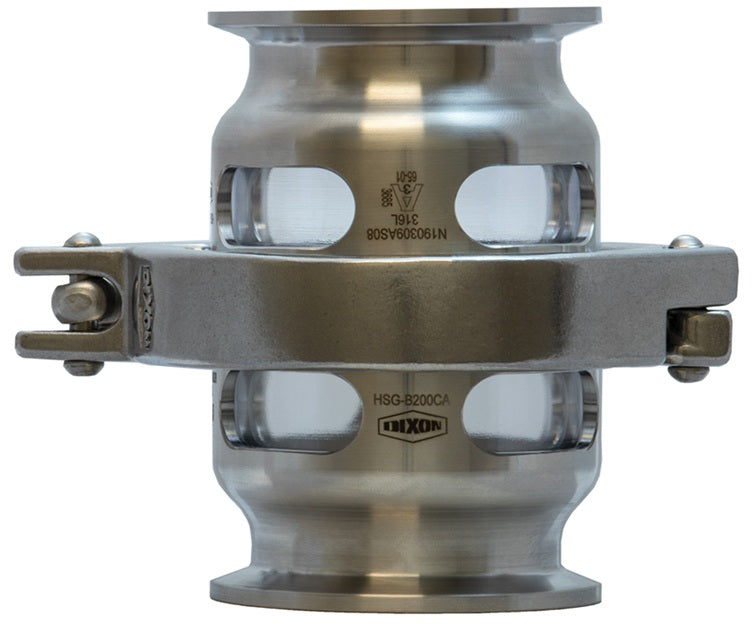

HSGV100CCA Dixon Valve HSG Sight Glass - 1" Single Pin Clamp Style - FKM Gasket - 316L Stainless Steel

Name: HSGV100CCA Dixon Valve HSG Sight Glass - 1" Single Pin Clamp Style - FKM Gasket - 316L Stainless Steel
Brand: Dixon
SKU: HSGV100CCA Dixon
Price: 238.39 USD
Availability: InStock

Save $12.99

$251.38

$251.38 - $251.38

$251.38

$238.39

$238.39 - $238.39

$238.39

Dixon Sanitary Fittings HSG Sight Glass - Single Pin Clamp Style - FKM Gasket - 316L Stainless Steel

Used widely in the food, dairy, and beverage sanitary processes to view fluids.

Can be used in industrial applications when you want to CIP and require 316L stainless steel construction.

Quantity

Specifications for Variant SKU: HSGV100CCA Dixon

Features:
Easy assembly and disassembly Clamp connection standard Higher pressure range than other sight glasses Rubber seals are I-line gasket Clamp protects glass from getting damaged Patent pending assembly design
Construction:
Body: 316L stainless steel Sight glass: Polycarbonate Gaskets: FKM (FKM supplied with single pin clamp) 3A Certified for CIP

Part Number	Tube OD	Max. Operating Pressure
HSGV100CCA	1"	500 PSI @ 70°F 300 PSI @ 200°F
HSGV150CCA	1-1/2"	450 PSI @ 70°F 250 PSI @ 200°F
HSGV200CCA	2"	400 PSI @ 70°F 200 PSI @ 200°F
HSGV250CCA	2-1/2"	350 PSI @ 70°F 175 PSI @ 200°F
HSGV300CCA	3"	250 PSI @ 70°F 125 PSI @ 200°F
HSGV400CCA	4"	80 PSI @ 70°F 40 PSI @ 200°F
HSGV600CCA	6"	50 PSI @ 70°F 25 PSI @ 200°F

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
