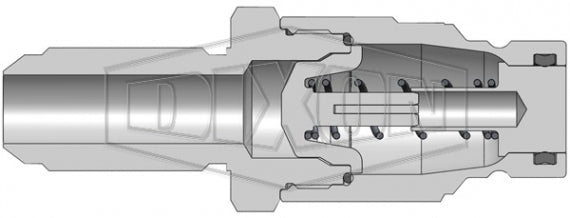

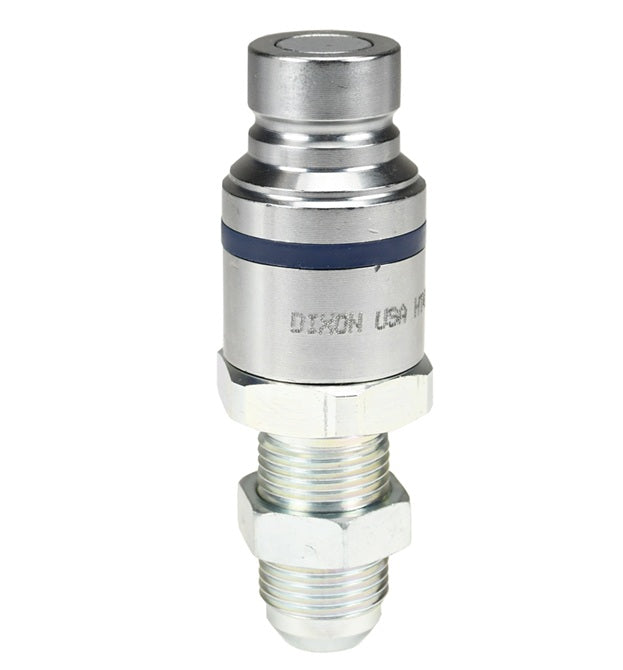

HT4JB5 by Dixon Valve | Hydraulic Quick Disconnect Coupling | HT-Series | 5/8" Male JIC Bulkhead x 1/2" ISO16028 Flushface Interchange | Plug | Steel

Save $3.14

$37.26

$37.26 - $37.26

$37.26

$34.12

$34.12 - $34.12

$34.12

Dixon Valve & Coupling
Hydraulic Coupling: HT-Series ISO16028 Flushface Interchange Plug (Male Bulkhead Threads)

Used in equipment for oilfield, industrial hydraulic, and construction.

Quantity

Specifications for Variant SKU: HT4JB5 Dixon
Series:	HT-Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male ISO-16028 Flush Face QD Interchange, 5/8in Male JIC
Material(s):	Steel

Compatibility & Interchange:	Interchangeable to ISO16028. Conforms to ISO16028 interchange standard interchangeable with Danfoss/Eaton/Hansen FF, Parker FEM, Snap-tite 74, Faster FFH/2FFN/2FFI, Stucchi A/FIRG and Holmbury HQ/A/FIMC.
Construction:	Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS compliant zinc nickel for corrosion resistance. Steel coupler sleeves are hardened to resist deformation and maximize service life.
Seal Components:	1/4", 3/8", 1/2", 3/4", and 1" plugs have molded polyurethane valve seals, with a temperature range of -65°F to 212°F (-54°C to 100°C). 5/8", 1-1/2", and 2" plugs have Nitrile-energized PTFE valve seals, with a temperature range of -40°F to 250°F (-40°C to 121°C). Couplers have a polyurethane valve stem O-ring, with a temperature range of -65°F to 212°F (-54°C to 100°C). Ancillary coupler and plug seals are Nitrile (Nitrile-N), with a temperature range of -40°F to 250°F (-40°C to 121°C). PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage.
Features:	High flow performance, compact profile. Easily rebuildable! High strength laser-cut valve guide maximizes valve stability while minimizing flow restriction. Improved sealing system incorporates a high performance molded polyurethane or O-ring energized PTFE valve seal. DORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditions.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

HT-Series \| ISO16028 Flushface Rated Pressure Chart
Body Size	Steel Coupler/Plug Coupled		316 SS Coupler/Plug Coupled		Steel Coupler Uncoupled		Steel Plug Uncoupled
Body Size	Max. Working	Burst	Max. Working	Burst	Max. Working	Burst	Max. Working	Burst
1/4"	5,000 PSI 345 Bar	20,000 PSI 1,379 Bar	-	-	5,000 PSI 345 Bar	20,000 PSI 1379 Bar	5,000 PSI 345 Bar	20,000 PSI 1,379 Bar
3/8"	5,000 PSI 345 Bar	20,000 PSI 1,379 Bar	3,500 PSI 241 Bar	17,500 PSI 1,207 Bar	5,000 PSI 345 Bar	20,000 PSI 1379 Bar	5,000 PSI 345 Bar	20,000 PSI 1,379 Bar
1/2"	5,000 PSI 345 Bar	20,000 PSI 1,379 Bar	3,400 PSI 234 Bar	17,000 PSI 1,172 Bar	5,000 PSI 345 Bar	20,000 PSI 1379 Bar	5,000 PSI 345 Bar	20,000 PSI 1,379 Bar
5/8"	5,000 PSI 345 Bar	20,000 PSI 1,379 Bar	2,920 PSI 201 Bar	14,600 PSI 1,007 Bar	5,000 PSI 345 Bar	20,000 PSI 1379 Bar	5,000 PSI 345 Bar	20,000 PSI 1,379 Bar
3/4"	5,000 PSI 345 Bar	20,000 PSI 1,379 Bar	2,920 PSI 201 Bar	14,600 PSI 1,007 Bar	5,000 PSI 345 Bar	20,000 PSI 1379 Bar	5,000 PSI 345 Bar	20,000 PSI 1,379 Bar
1"	5,000 PSI 345 Bar	20,000 PSI 1,379 Bar	2,920 PSI 201 Bar	14,600 PSI 1,007 Bar	5,000 PSI 345 Bar	20,000 PSI 1379 Bar	5,000 PSI 345 Bar	20,000 PSI 1,379 Bar
1-1/2"	3,000 PSI 207 Bar	12,000 PSI 828 Bar	-	-	3,000 PSI 207 Bar	12,000 PSI 828 Bar	3,000 PSI 207 Bar	12,000 PSI 828 Bar
2"	3,000 PSI 207 Bar	12,000 PSI 828 Bar	-	-	3,000 PSI 207 Bar	12,000 PSI 828 Bar	3,000 PSI 207 Bar	12,000 PSI 828 Bar

HT-Series \| ISO16028 Flushface Interchange Plug (Male Bulkhead Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
HT4RB4	Plug/Male	1/2"	13/16"-16 Male ORFS BH	Steel	3.83" (97.2mm)	1.44" (36.5mm)	1-5/16"
HT4JB5	Plug/Male	1/2"	7/8" - 14 Male JIC BH	Steel	3.99" (101.3mm)	1.44" (36.6mm)	1-5/16"
HT4RB5	Plug/Male	1/2"	1" - 14 Male ORFS BH	Steel	3.98" (101.1mm)	1.44" (36.6mm)	1-5/16"
HT4RB6	Plug/Male	1/2"	1-3/16"-12 Male ORFS BH	Steel	4.00" (101.6mm)	1.44" (36.5mm)	1-5/16"
HT4JB6	Plug/Male	1/2"	1-1/16" - 12 Male JIC BH	Steel	4.16" (115.6mm)	1.44" (36.6mm)	1-5/16"

HT-Series \| ISO16028 Flushface Interchange Coupler (Male Bulkhead Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
4HTRB4	Socket/Male	1/2"	13/16"-16 Male ORFS BH	Steel	4.19" (106.4mm)	1.54" (39.1mm)	1-5/16"
4HTJB5	Socket/Male	1/2"	7/8" - 14 Male JIC BH	Steel	4.38" (111.3mm)	1.54" (39.1mm)	1-5/16"
4HTRB5	Socket/Male	1/2"	1" - 14 Male ORFS BH	Steel	4.37" (111.0mm)	1.54" (39.1mm)	1-5/16"
4HTRB6	Socket/Male	1/2"	1-3/16"-12 Male ORFS BH	Steel	4.40" (111.7mm)	1.54" (39.1mm)	1-5/16"
4HTJB6	Socket/Male	1/2"	1-1/16" - 12 Male JIC BH	Steel	4.55" (115.6mm)	1.54" (39.1mm)	1-5/16"

HT-Series \| Correct Connect® Bands

Part NumberBlue Part Number	Part NumberOrange Part Number	Part NumberGreen Part Number	Part NumberYellow Part Number	Part NumberRed Part Number	Description	Body Size
2HTBAND-B	2HTBAND-O	2HTBAND-G	2HTBAND-Y	2HTBAND-R	Coupler Band	1/4"
HT2BAND-B	HT2BAND-O	HT2BAND-G	HT2BAND-Y	HT2BAND-R	Plug Band	1/4"

3HTBAND-B	3HTBAND-O	3HTBAND-G	3HTBAND-Y	3HTBAND-R	Coupler Band	3/8"
HT3BAND-B	HT3BAND-O	HT3BAND-G	HT3BAND-Y	HT3BAND-R	Plug Band	3/8"

4HTBAND-B	4HTBAND-O	4HTBAND-G	4HTBAND-Y	4HTBAND-R	Coupler Band	1/2"
HT4BAND-B	HT4BAND-O	HT4BAND-G	HT4BAND-Y	HT4BAND-R	Plug Band	1/2"

5HTBAND-B	5HTBAND-O	5HTBAND-G	5HTBAND-Y	5HTBAND-R	Coupler Band	5/8"
HT5BAND-B	HT5BAND-O	HT5BAND-G	HT5BAND-Y	HT5BAND-R	Plug Band	5/8"

6HTBAND-B	6HTBAND-O	6HTBAND-G	6HTBAND-Y	6HTBAND-R	Coupler Band	3/4"
HT6BAND-B	HT6BAND-O	HT6BAND-G	HT6BAND-Y	HT6BAND-R	Plug Band	3/4"

8HTBAND-B	8HTBAND-O	8HTBAND-G	8HTBAND-Y	8HTBAND-R	Coupler Band	1"
HT8BAND-B	HT8BAND-O	HT8BAND-G	HT8BAND-Y	HT8BAND-R	Plug Band	1"
