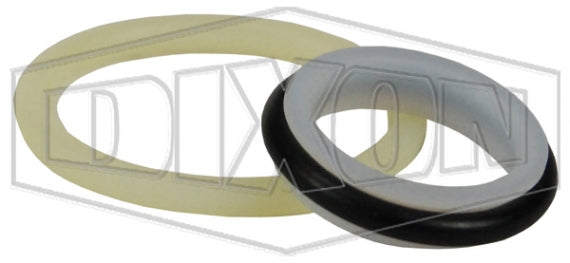

HT8-SKIT-V2 by Dixon Valve | Hydraulic Quick Disconnect Coupling | HT-Series | ISO16028 Flushface Interchange Plug Seal Kit | Fits 1" Body Size | Nitrile Seal | Main Valve Seal & Adapter O-Ring

Save $0.44

$6.76

$6.76 - $6.76

$6.76

$6.32

$6.32 - $6.32

$6.32

Dixon Valve & Coupling
Hydraulic Coupling: HT-Series ISO16028 Flushface Interchange Plug Seal Kit

Includes main valve seal and adapter O-ring.

Quantity

Specifications for Variant SKU: HT8-SKIT-V2 Dixon
Series:	HT-Series
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Interchangeable to ISO16028. Conforms to ISO16028 interchange standard interchangeable with Danfoss/Eaton/Hansen FF, Parker FEM, Snap-tite 74, Faster FFH/2FFN/2FFI, Stucchi A/FIRG and Holmbury HQ/A/FIMC.
Kit Contains:	Main Valve Seal, Adapter O-Ring.
Construction:	Seal Material: Nitrile
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

HT-Series \| HT-Series ISO16028 Flushface Plug Seal Kit
Part Number	Description	Fits Body Size	Coupler Style
HT2-SKIT-V2	Plug Seal Kit	1/4"	All
HT3-SKIT-V2	Plug Seal Kit	3/8"	All
HT4-SKIT-V2	Plug Seal Kit	1/2"	All
HT5-SKIT-V2	Plug Seal Kit	5/8"	All
HT6-SKIT-V2	Plug Seal Kit	3/4"	All
HT8-SKIT-V2	Plug Seal Kit	1"	All
