HTSS5180-400X25 Hose-Tec by Kuriyama | HT5000 Series | Smooth Bore (Lined) "Smooth Flow" Interlocked Metal Hose | SS Armor/SS Liner | Medium Weight | ID: 4" | 304 Stainless Steel | 25ft Length

Save $396.78

$1,388.73

$1,388.73 - $1,388.73

$1,388.73

$991.95

$991.95 - $991.95

$991.95

Kuriyama Hose Tec® HT5000 Series Smooth Bore (Lined) "Smooth Flow" Interlocked Metal Hose - Medium Weight - 300 Stainless Steel

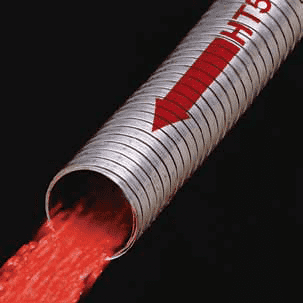

HT5000's Smooth Bore Interlocked Metal Hose combines the Hose Tec® single-strip interlocking armor construction with a second strip liner, providing a smooth interior flexible metal hose that resists material build-up; reduces internal abrasion and material degradation. Materials flow smoothly in one direction shown by arrows.

Package Quantity: 25 FT

Specifications for Variant SKU: HTSS5180-400X25 Kuriyama \| 25 \|
Brand:	Hose Tec
Series:	HTSS5180 Series
Hose Color(s):	Metallic
Internal Diameter:	4in
Tubing Construction:	304 Stainless Steel

SPECIFICATIONS

Other Features:
Application:	Abrasive Material Handling, Bulk Unloading/Loading (Railcar/Truck), Dry Bulk Transfer (Railcar/Truck/In-Plant), Grain Handling, High Temperature Material Handling, Low Temperature Material Transfer, Plastic Pellet Transfer, Pneumatic Transfer, Railcar - Bulk Unloading/Loading, Truck - Bulk Unloading/Loading, Vacuum Trucks and Equipment	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	300 Stainless Steel
Reinforcement:	N/A	Cover:	300 Stainless Steel
Temperature Range:	Max. Service Temp: Up to 1500 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Construction: An armor strip is combined with a strip of liner material and formed to create a lined flexible interlocked metal hose that offers superior strength and abrasion-resistance for longer hose life. Thickness: .018" Armor / .015" Liner Directional flow arrows are provided on each length. Galvanized or Stainless steel liner provides additional strength and greater resistance to abrasion; extends hose life. Smooth liner reduces material degradation and improves loading/unloading time.

Part Number	Hose Size ID (in.)	Min Inside Bend Radius (in.)	Length (ft.)	Weight (per foot)
HTSS5180-150X25	1-1/2"	6.00"	25ft	1.50 lbs
HTSS5180-175X25	1-3/4"	7.00"	25ft	1.70lbs
HTSS5180-200X25	2"	7.50"	25ft	1.60 lbs
HTSS5180-225X25	2-1/4"	9.50"	25ft	2.10 lbs
HTSS5180-250X25	2-1/2"	10.50"	25ft	2.30 lbs
HTSS5180-275X25	2-3/4"	12.50"	25ft	2.50 lbs
HTSS5180-300X25	3"	14.00"	25ft	2.80lbs
HTSS5180-350X25	3-1/2"	15.00"	25ft	3.20lbs
HTSS5180-400X25	4"	16.00"	25ft	3.60lbs
HTSS5180-450X25	4-1/2"	18.50"	25ft	4.00lbs
HTSS5180-500X25	5"	20.50"	25ft	4.70lbs
HTSS5180-600X25	6"	24.50"	25ft	5.60lbs
HTSS5180-700X25	7"	29.00"	25ft	6.60lbs
HTSS5180-800X25	8"	31.50"	25ft	7.70lbs
HTSS5180-1000X25	10"	39.50"	25ft	9.70lbs
HTSS5180-1200X25	12"	47.00"	25ft	11.70lbs
HTSS5180-1400X25	14"	55.00"	25ft	13.50lbs
HTSS5180-1600X25	16"	63.00"	25ft	15.00lbs

Note: If utilizing packing material, service temperatures may vary. Note: Standard coil length is 25 ft., WHEN FULLY EXTENDED; other lengths available on request.
