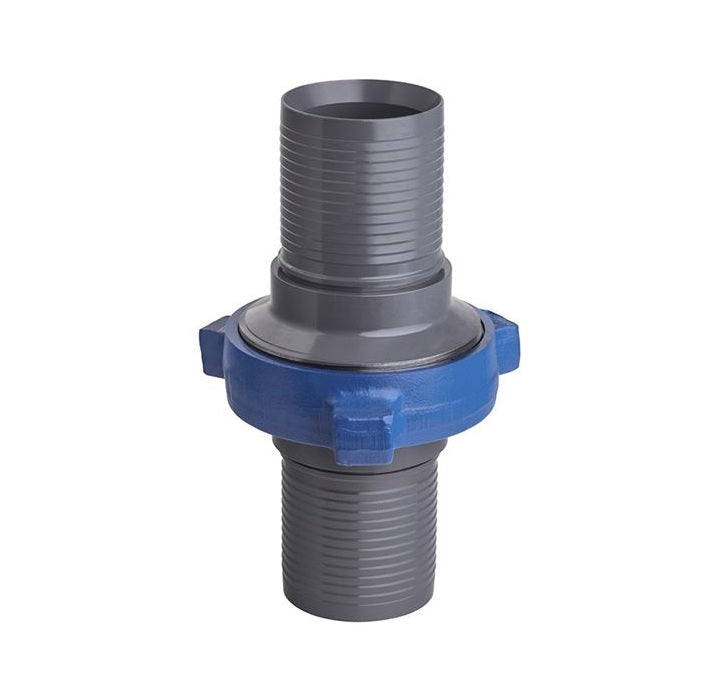

HUB206-4 by Kuriyama | HUB206 Series | Barbed Hammer Union | Figure 206 | 4" Size | 400/300 PSI CWP | Zinc Plated Iron

Save $72.13

$309.65

$309.65 - $309.65

$309.65

$237.52

$237.52 - $237.52

$237.52

Kuriyama of America Inc.
HUB206 Series | Barbed Hammer Union | Figure 206

Suitable for frac water and sand slurry applications.

Interchangeable with all 206 style hammer unions.

Specifications for Variant SKU: HUB206-4 Kuriyama
Series:	HUB206 Series
Shape (Orientation):	Straight
Ends Configuration:	4in Hose Barb, 4in Hose Barb, Some Ends Match
Material(s):	Zinc Plated Iron

What are the Features?

Suitable for frac water and sand slurry applications.
Interchangeable with all 206 style hammer unions.
Versatility of barbs allow for use with interlocking crimp ferrules or crimp sleeves.
Eliminates leak paths created with threaded fittings.

What are the Materials?

Hammer Union Nut (A-105/AISI 1020).
Zinc plated machined malleable iron body.
400 PSI rating using heavy duty crimp ferrules.
300 PSI rating using crimp sleeves.
Buna-N O-Ring.

Part Number	Size (in)	CWP Rating at 70°F	Weight Each (lbs)
HUB206-4	4"	400/300 PSI	32.00 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.

Shop Parts by Kuriyama
