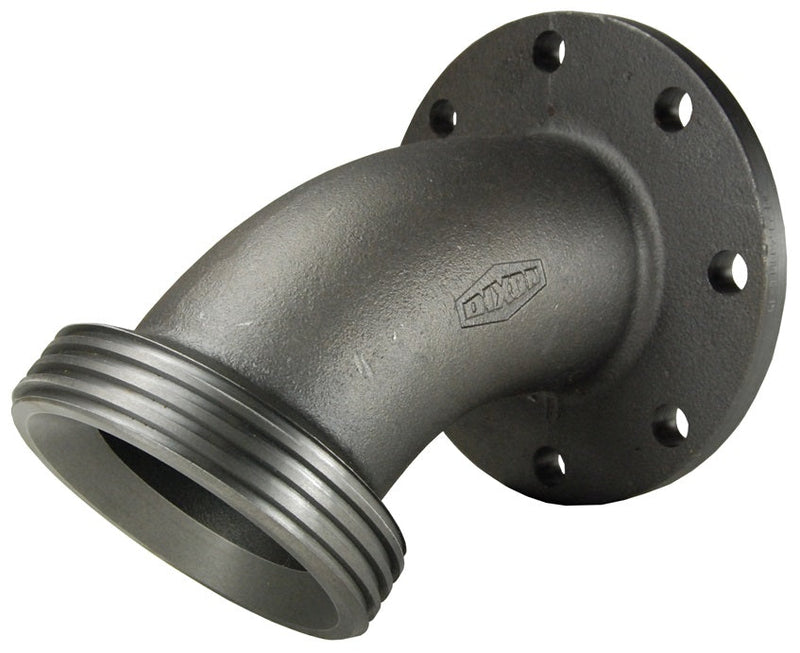

HUF206400FLG-45 by Dixon Valve | Boss® One-Piece Flange Adapter | 45° Elbow | Figure 206 | 4" Size | Female Hammer Union x 125# Flange | Iron

HUF206400FLG-45 by Dixon Valve | Boss® One-Piece Flange Adapter | 45° Elbow | Figure 206 | 4" Size | Female Hammer Union x 125# Flange | Iron

Save $205.68 Save $205.68
$514.20
$514.20 - $514.20
$514.20
$308.52
$308.52 - $308.52
$308.52

Dixon Valve
Boss® | LPS One-Piece Flange Adapter | 45° Elbow

Used in the transfer of water, brine, water-based chemicals, water-based acids, and gelatinous proppant (sand) slurry used at hydraulic fracturing sites.
Specifications for Variant SKU: HUF206400FLG-45 Dixon
Brand: Boss
Shape (Orientation): 45 Degree
Material(s): Iron
Features:
  • Figure 206 threads are interchangeable with other reliable brands.
  • 125# flange matches the bolt pattern of 150# flange.
  • No welds or pipe threads to deteriorate and cause premature leakage.
  • Two-piece nut is pinned and bolted for perfect alignment.
Material:
  • Iron
Specifications:
  • Iron adapter meets ASTM standards.
  • Forged Steel nut meets AISI standards.
Part Number Size Figure Description Overall
Length
HUF206400FLG-45 4" 206 Female Hammer Union x 125# Flange 10-31/32"
HUM206400FLG-45 4" 206 Male Hammer Union x 125# Flange (Includes: Nut & Nitrile Rubber O-Ring) 12-1/32"
(with nut)
