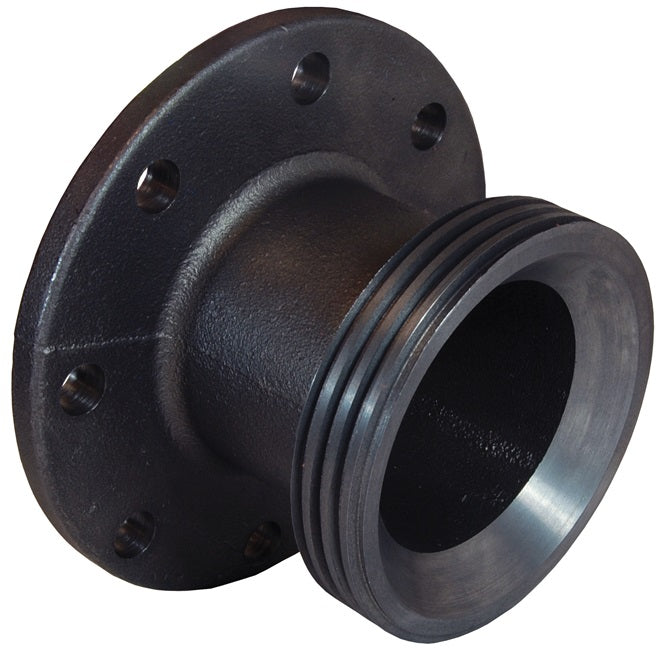

HUF206400FLG-ST by Dixon Valve | Boss® One-Piece Short Flange Adapter | Figure 206 | 4" Size | Female Hammer Union x 125# Flange Short | Iron

Save $66.05

$165.12

$165.12 - $165.12

$165.12

$99.07

$99.07 - $99.07

$99.07

Dixon Valve
Boss® | LPS One-Piece Short Flange Adapter

Used in the transfer of water, brine, water-based chemicals, water-based acids, and gelatinous proppant (sand) slurry used at hydraulic fracturing sites.

Specifications for Variant SKU: HUF206400FLG-ST Dixon
Brand:	Boss
Shape (Orientation):	Straight
Material(s):	Iron

Features:
Figure 206 threads are interchangeable with other reliable brands. 125# flange matches the bolt pattern of 150# flange. No welds or pipe threads to deteriorate and cause premature leakage. Two-piece nut is pinned and bolted for perfect alignment.
Material:
Iron
Specifications:
Iron adapter meets ASTM standards. Forged Steel nut meets AISI standards.

Part Number	Size	Figure	Description	Overall Length
HUF206400FLG-ST	4"	206	Female Hammer Union x 125# Flange Short	3"
HUM206400FLG-ST	4"	206	Male Hammer Union x 125# Flange Short (Includes: Nut & Nitrile Rubber O-Ring)	3-13/32" (with nut)

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
