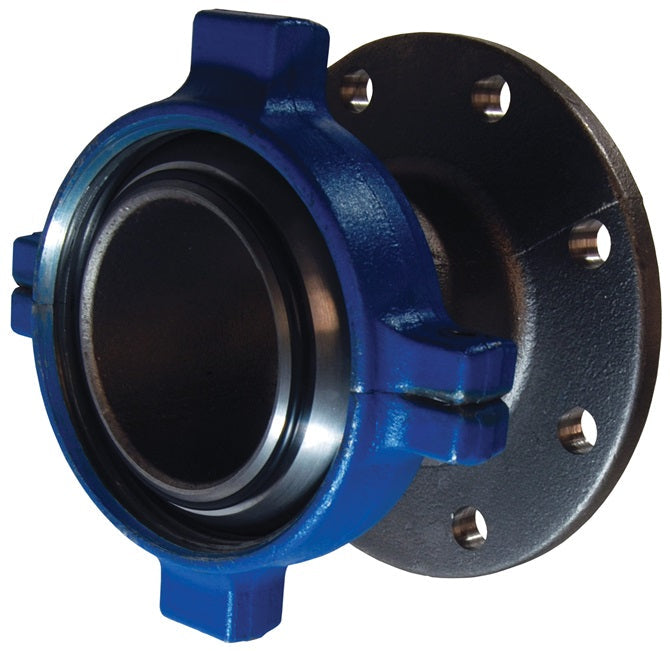

HUM206400FLG by Dixon Valve | Boss® One-Piece Flange Adapter | Figure 206 | 4" Size | Male Hammer Union x 125# Flange Includes Nut And Nitrile Rubber O-Ring | Iron

Name: HUM206400FLG by Dixon Valve | Boss® One-Piece Flange Adapter | Figure 206 | 4" Size | Male Hammer Union x 125# Flange Includes Nut And Nitrile Rubber O-Ring | Iron
Brand: Dixon
SKU: HUM206400FLG Dixon
Price: 339.67 USD
Availability: InStock

Save $226.45

$566.12

$566.12 - $566.12

$566.12

$339.67

$339.67 - $339.67

$339.67

Dixon Valve
Boss® | LPS One-Piece Flange Adapter

Used in the transfer of water, brine, water-based chemicals, water-based acids, and gelatinous proppant (sand) slurry used at hydraulic fracturing sites.

Quantity

Specifications for Variant SKU: HUM206400FLG Dixon
Brand:	Boss
Shape (Orientation):	Straight
Material(s):	Iron, Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Features:
Use with HU200400RN two-piece nut. Flange x female or male hammer union straights (standard or short length). No welds or pipe threads to deteriorate and cause premature leakage. Two-piece nut is pinned and bolted for perfect alignment. All 4" Figure 206 threads are interchangeable with other reliable brands. 125# flange match the bolt pattern of 150# flange. Replacement for welded multi-piece flange adapter.
Material:
Iron
Specifications:
Iron adapter meets ASTM standards.

Part Number	Size	Figure	Description	Overall Length
HUF206400FLG	4"	206	Female Hammer Union x 125# Flange	5-1/8"
HUM206400FLG	4"	206	Male Hammer Union x 125# Flange Includes Nut And Nitrile Rubber O-Ring	5-9/16" (with nut)
HUFALL600FLG	6"	100/200/206	125# Flange x Female Hammer Union; Connects to Figures 100/200/206	4-1/2"
HUM206600FLG	6"	206	125# Flange x Male (Includes Iron Nut and O-Ring)	4-15/16"
HUFALL800FLG	8"	100/200/206	125# Flange x Female Hammer Union; Connects to Figures 100/200/206	4-1/2"
HUM206800FLG	8"	206	125# Flange x Male (Includes Nut and O-Ring)	5-7/32"
