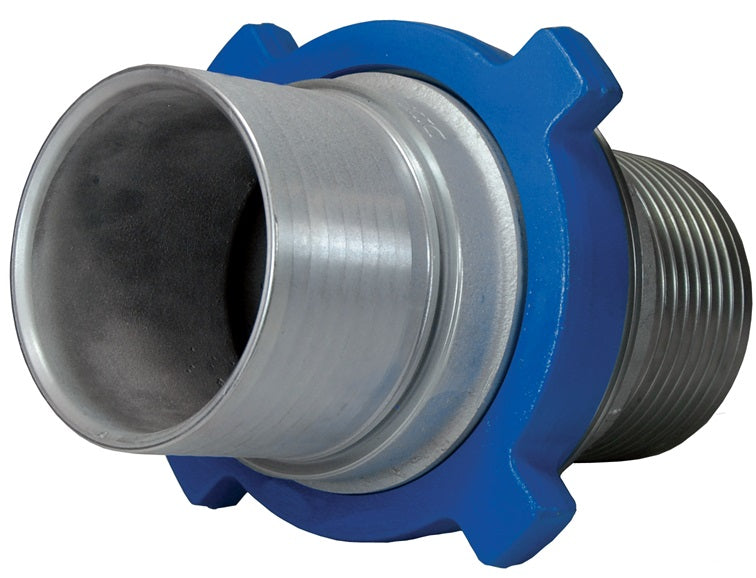

HUMF206800CS by Dixon Valve | Boss® LPS Frac Fitting | Figure 206 | Complete Male / Female Assembly | 8" Size | Iron/Steel

HUMF206800CS by Dixon Valve | Boss® LPS Frac Fitting | Figure 206 | Complete Male / Female Assembly | 8" Size | Iron/Steel

Save $28.15 Save $28.15
$1,267.02
$1,267.02 - $1,267.02
$1,267.02
$1,238.87
$1,238.87 - $1,238.87
$1,238.87

Dixon Valve
Boss® | LPS Frac Fitting | Complete Male / Female Assembly

Used in the fast-paced transfer of water, chemicals, and sand slurry to a hydraulic fracturing site.
Specifications for Variant SKU: HUMF206800CS Dixon
Brand: Boss
Shape (Orientation): Straight
Ends Configuration: 8in Male Frac Fitting, 8in Female Frac Fitting, 8in Hose Barb
Material(s): Iron, Steel
Compatibility & Interchange Data:
  • Interchangeable with current fittings; phase them into your current operation.
  • Designed to work with Dixon King Crimp Ferrules.
Features:
  • One-piece design eliminates leak path experienced with two-piece threaded systems.
  • Long lasting and dependable forged hammer nut.
  • Durable and safe with reliable hose retention when crimped as specified.
Construction:
  • Frac fittings: machined iron to ASTM standards; zinc plated.
  • Nut: forged steel meeting AISI standards.
  • Painted Carbon Steel forged nut.
  • Figure 200 has a metal-to-metal sealing surface and Figure 206 is similar to Figure 200 with a secondary seal to supplement the metal-to-metal design.
Specifications:
  • 400 PSI working pressure at 70°F (21°C) for 3" and 4" sizes; 4:1 safety factor (SF)1
  • 230 PSI working pressure at 70°F (21°C) for 6" size; 4:1 safety factor (SF)
  • 150 PSI working pressure at 70°F (21°C) for 8" size; 3:1 safety factor (SF)
  • 400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with:
    • 3" size uses standard crimp ferrules
    • 4" size requires heavy duty (HD) crimp ferrules, CF400-6CSHD through
    • CF400-16CSHD and heavy duty stems.
  • NOTE: Water and petroleum transfer hoses rated from 100 to 300 PSI WP (4:1 SF) have excellent test results with the standard King Crimp ferrules CF400-xxCS.
Safety Notes:
  • 400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with: 2" and 3" sizes using standard crimp ferrules.
Part Number Size Figure
HUMF200200CS 2" 200
HUMF100300CS 3" 100
HUMF200300CS 3" 200
HUMF206300CS 3" 206
HUMF100400CS 4" 100
HUMF206400CS 4" 206
HUMF100600CS 6" 100
HUMF206600CS 6" 206
HUMF100800CS 8" 100
HUMF200800CS 8" 200
HUMF206800CS 8" 206
