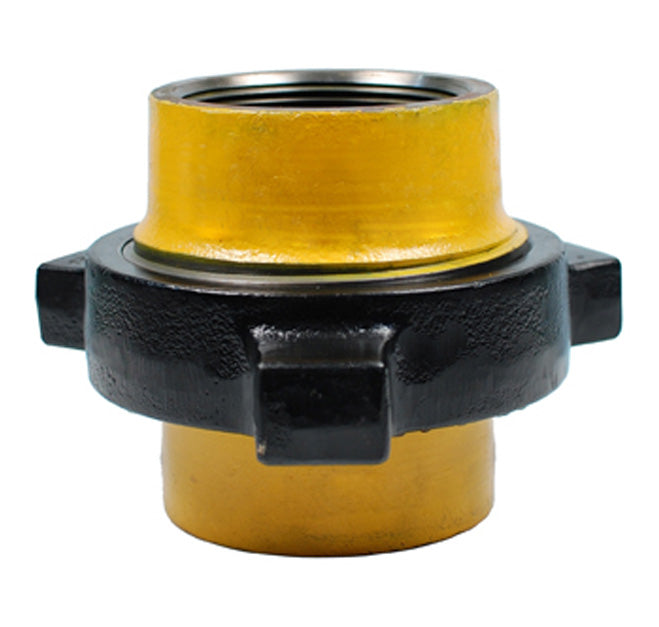

HUT100-3 by Kuriyama | HUT100 Series | Threaded Hammer Union | Figure 100 | 3" Size | 1000 PSI CWP | Carbon Steel

HUT100-3 by Kuriyama | HUT100 Series | Threaded Hammer Union | Figure 100 | 3" Size | 1000 PSI CWP | Carbon Steel

Save $26.77 Save $26.77
$72.09
$72.09 - $72.09
$72.09
$45.32
$45.32 - $45.32
$45.32

Kuriyama of America Inc.
HUT100 Series | Threaded Hammer Union | Figure 100

Applications include oil, gas, air, and water.

Color-coded for easy identification.

Unions are interchangeable with like products.
Specifications for Variant SKU: HUT100-3 Kuriyama
Series: HUT100 Series
Shape (Orientation): Straight
Ends Configuration: 3in Female NPT, 3in Female NPT, Some Ends Match
Material(s): Carbon Steel

What are the Features?

  • Applications include oil, gas, air, and water.
  • Color-coded for easy identification.
  • Unions are interchangeable with like products.
  • CWP (Cold Working Pressure) is the maximum pressure at +70¢ªF (+21¢ªC).

What are the Materials?

  • Body: A-105/AISI 1020 Carbon Steel.
  • Nut: A-105/AISI 1020 Carbon Steel.
Part Number Size (in) CWP Rating
at 70°F 		Weight Each
(lbs)
HUT100-2 2" 1000 PSI 5.29 lbs
HUT100-3 3" 1000 PSI 11.60 lbs
HUT100-4 4" 1000 PSI 17.75 lbs
HUT100-6 6" 1000 PSI 44.40 lbs
HUT100-8 8" 1000 PSI 69.90 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
