Kuriyama of America Inc.

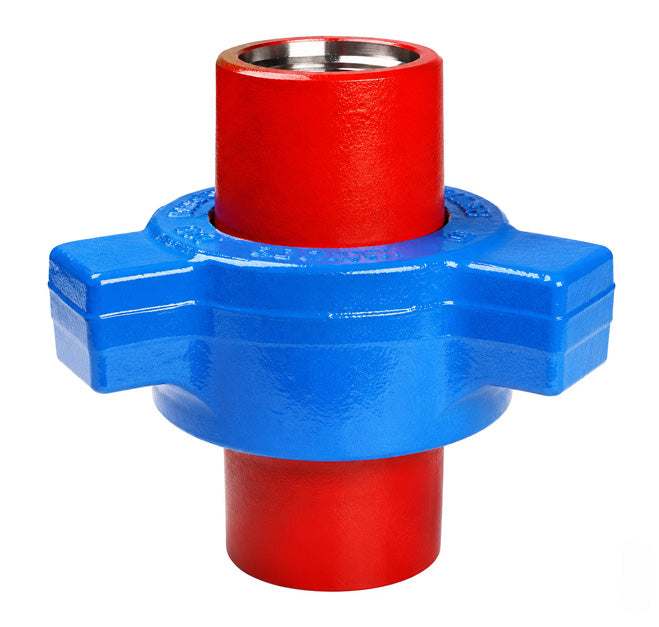

HUT1502 Series | Threaded Hammer Union | Figure 1502

Applications include oil, gas, air, and water.

Color-coded for easy identification.

Unions are interchangeable with like products.

Specifications for Variant SKU: HUT1502-2 Kuriyama
Series:	HUT1502 Series
Shape (Orientation):	Straight
Ends Configuration:	2in Female NPT, 2in Female NPT, Some Ends Match
Material(s):	Carbon Steel
Seal Material(s):	Buna-N/Nitrile Rubber

What are the Features?

Applications include oil, gas, air, and water.
Color-coded for easy identification.
Unions are interchangeable with like products.
CWP (Cold Working Pressure) is the maximum pressure at +70¢ªF (+21¢ªC).
Supplied with specially designed Buna-N lip type elastomer seal, which protects metal-to-metal sealing surfaces and reduces line flow turbulence.

What are the Materials?

Body: AISI 4130 Carbon Steel.
Nut: AISI 4130 Carbon Steel.

Part Number	Size (in)	CWP Rating at 70°F	Weight Each (lbs)
HUT1502-2	2"	15000 PSI	18.96 lbs
HUT1502-3	3"	15000 PSI	27.56 lbs
