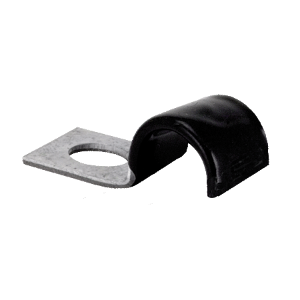

HVN-10 by Foster | Loop Clamp w/ PVC Coating | Clamp Diameter: 5/8" | Galvanized Steel
HVN-10 by Foster | Loop Clamp w/ PVC Coating | Clamp Diameter: 5/8" | Galvanized Steel

HVN-10 by Foster | Loop Clamp w/ PVC Coating | Clamp Diameter: 5/8" | Galvanized Steel

Save $1.72 Save $1.72
$2.92
$2.92 - $2.92
$2.92
$1.20
$1.20 - $1.20
$1.20

Foster
HVN Loop Clamps | Vinyl Dipped Galvanized Steel
Specifications for Variant SKU: HVN-10 Zsi-Foster
Series: HVN Series
Material(s): Galvanized Steel, PVC
Special Properties: Coated
Clamp Width: 0.5
Maximum Clamp I.D.: 0.625
Features:
  • Black vinyl plastic coated (PVC)
  • Galvanized Steel for corrosion resistance
  • Temperature range -25°F to +160°F (-32°C to +71°C)

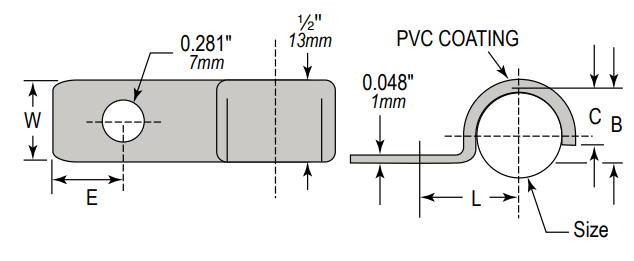

Part Number Clamp ID L E B C W
HVN-04 1/4" 0.500" 0.250" 0.250" 0.250" 1/2"
HVN-05 5/16" 0.531" 0.312" 0.312" 0.188" 5/8"
HVN-06 3/8" 0.562" 0.312" 0.375" .281" 5/8"
HVN-08 1/2" 0.687" 0.312" 0.500" 0.343" 5/8"
HVN-09 9/16" 0.750" 0.312" 0.625" 0.406" 5/8"
HVN-10 5/8" 0.812" 0.312" 0.625" 0.406" 5/8"
HVN-12 3/4" 0.875" 0.312" 0.750" 0.468" 5/8"

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
