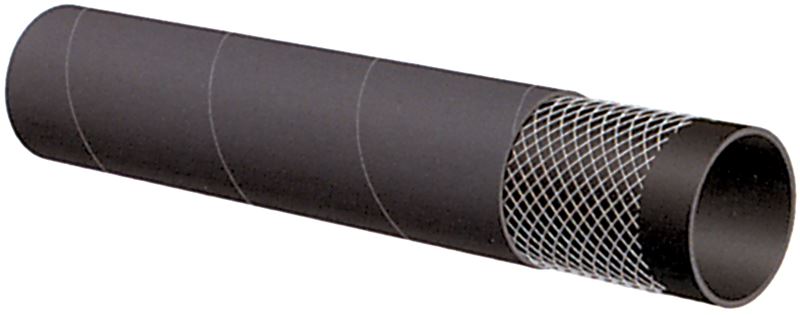

HWT763AA400X100 Alfagomma by Kuriyama | HWT763AA Series | Heavy Duty Dry Powder Delivery Hose (3/8" Tube) | 4" ID | 4.96" OD | 75 PSI | Black | 100ft Length

HWT763AA400X100 Alfagomma by Kuriyama | HWT763AA Series | Heavy Duty Dry Powder Delivery Hose (3/8" Tube) | 4" ID | 4.96" OD | 75 PSI | Black | 100ft Length

Save $821.81 Save $821.81
$3,275.09
$3,275.09 - $3,275.09
$3,275.09
$2,453.28
$2,453.28 - $2,453.28
$2,453.28

Kuriyama of America Inc.
Alfagomma | HWT763AA Series | Heavy Duty Dry Powder Delivery Hose - 3/8" Tube

For the discharge of dry powders under low pressure and the pneumatic transfer of dry materials and abrasive slurries.

Package Quantity: 100 Foot

Specifications for Variant SKU: HWT763AA400X100 Kuriyama | 100 |
Brand: Alfagomma
Series: HWT763AA Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.96in
Tubing Construction: Natural Rubber
Cover Construction: SBR/NR Blend
Special Properties: Conductive Tube, Conductive Hose Cover

SPECIFICATIONS

Application: Discharge of dry powders under low pressure. Pneumatic transfer of dry materials and abrasive slurries.
Other Ratings: - Tube: 3/8" black static conducting NR - compounded to resist cutting by abrasive materials.
Reinforcement: Spiraled high tensile textile cords. Cover: Black conductive SBR/NR blend - abrasion and ozone resistant.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding: ALFAGOMMA - ITALY T763 5 BAR (75 PSI) HEAVY DUTY BULK MATERIAL DELIVERY (in green letters)
Note: Excessive bending during operation may cause premature wear.
Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Weight
(in) (mm) (in) (mm) PSI lbs/ft
HWT763AA400X100 4" 102mm 4.96" 126mm 75 PSI 2.56 lbs/ft
