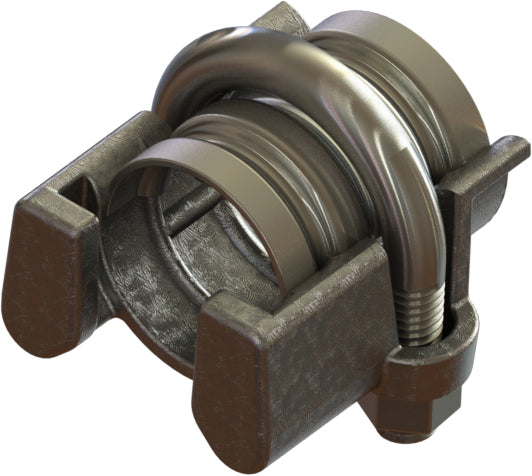

IC-4L by Campbell Fittings | Interlocking U-Bolt Clamp | Double U-Bolt | 1" Hose Size | 1-1/2" - 1-11/16" Hose OD min/max

IC-4L by Campbell Fittings | Interlocking U-Bolt Clamp | Double U-Bolt | 1" Hose Size | 1-1/2" - 1-11/16" Hose OD min/max

Save $10.61 Save $10.61
$26.53
$26.53 - $26.53
$26.53
$15.92
$15.92 - $15.92
$15.92

by Campbell
Interlocking U-Bolt Clamps:Double U-Bolt
Specifications for Variant SKU: IC-4L Campbell Fittings
Shape (Orientation): Straight
Recommended Use:
  • High-pressure steam and air
Recommended Use:
  • 360 design wraps completely around hose for superior retention.
  • Clamps fit hoses tightly without cracking, eliminating costly rework.
  • Bolts on "up side" allow easier tightening/re-tightening and improve "dragability".
  • Field repairable.
Part Number Hose OD (min) Hose OD (max) Hose Size
IC-4 1-5/16" 1-1/2" 1"
IC-4L 1-1/2" 1-11/16" 1"
IC-5 1-9/16" 2" 1-1/4"
IC-6 1-15/16" 2-3/16" 1-1/2"
IC-6L 2-3/16" 2-3/8" 1-1/2"
IC-8 2-11/32" 2-11/16" 2"
IC-8L 2-11/16" 2-15/16" 2"
IC-10 3" 3-9/32" 2-1/2"
IC-10L 3-9/32" 3-9/16" 2-1/2"
Campbell Fittings

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
