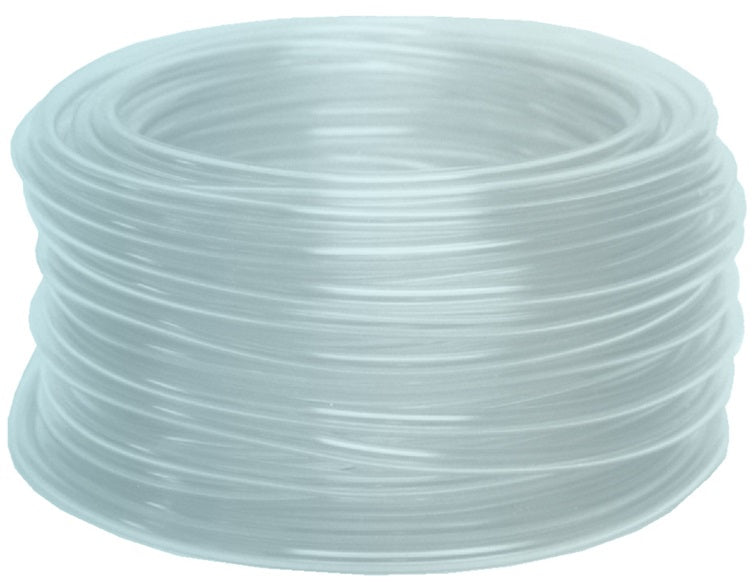

ICL0810 by Dixon Valve | Imported PVC Tubing | 5/8" OD | 1/2" ID | 100ft Length

ICL0810 by Dixon Valve | Imported PVC Tubing | 5/8" OD | 1/2" ID | 100ft Length

Save $0.91 Save $0.91
$33.56
$33.56 - $33.56
$33.56
$32.65
$32.65 - $32.65
$32.65

Dixon Valve
PVC Tubing | Imported

For use with standard shank fittings in low-pressure liquid and pneumatic applications.
Specifications for Variant SKU: ICL0810 Dixon
Series: Plastic Fittings and Tubing
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.50in
Outer Diameter: 0.625in
Tubing Construction: PVC
Features:
  • Shipped in bundles wrapped with PVC film.
Specifications:
  • Temperature range: 14°F to 149°F (-10°C to 65°C).
Clear PVC
Part Number		 Size Working Pressure
PSI @ 70°F (21°C)		 Length
O.D. I.D.
ICL0406 3/8" 1/4" 50 100ft
ICL0608 1/2" 3/8" 35 100ft
ICL0810 5/8" 1/2" 35 100ft
ICL0812 3/4" 1/2" 50 100ft
ICL1216 1" 3/4" 35 100ft
ICL1620 1-1/4" 1" 30 100ft
ICL2432 2" 1-1/2" 15 50ft
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
