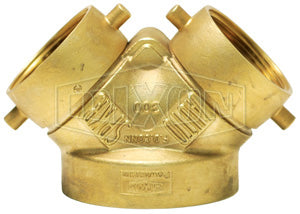

ISCS4025F Dixon Auto-Spkr Cast Brass Straight Single Clapper Siamese Connection - Back Outlet - 4" Female NPT Outlet x Two 2-1/2" Female NST(NH) Inlets (Global)

Name: ISCS4025F Dixon Auto-Spkr Cast Brass Straight Single Clapper Siamese Connection - Back Outlet - 4" Female NPT Outlet x Two 2-1/2" Female NST(NH) Inlets (Global)
Brand: Dixon
SKU: ISCS4025F Dixon
Price: 213.96 USD
Availability: InStock

Save $9.96

$223.92

$223.92 - $223.92

$223.92

$213.96

$213.96 - $213.96

$213.96

Dixon Fire Fittings
Single Clapper Siamese Connections - Back Outlet - Cast Brass

Provides the required 500 GPM minimum to supplement the fire protection as an auxiliary inlet connection to the water supply. (250 GPM minimum per inlet.)

Quantity

Specifications for Variant SKU: ISCS4025F Dixon
Shape (Orientation):	Y
Ends Configuration:	4in Female NPT, 2-1/2in Female NST
Material(s):	Brass

Features:
UL listed. ULC listed. Factory Mutual approved. Branding: Auto-Spkr. The swing clapper design provides an unobstructed waterway. Exposed Fire Department Connections (FDC) provide an economical method of satisfying local fire codes. Single swing clapper with (2) pin lug swivel inlets. Maximum operating pressure: 250 PSI at 70°F (21°C).


Size	A	B	C
4" x 2-1/2" x 2-1/2" (Dimensions match SCS4025F)	5-1/8"	9"	6-1/16"

Part Number	Inlet	(2) Outlets	Weight (Lbs.)
SCS4025F	4" Female NPT	2-1/2" Female NST (NH)	10.9200
ISCS4025F*	4" Female NPT	2-1/2" Female NST (NH)	7.5000

* Parts are Imported, all others made in the USA

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
