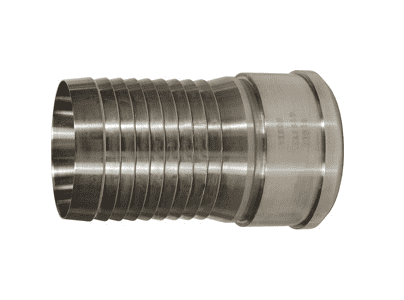

IXFS32-3A Dixon 2" 304 Stainless Steel Internal Expansion (IX) Bevel Seat Hose Coupling - Female Shank

IXFS32-3A Dixon Valve 2" 304 Stainless Steel Internal Expansion (IX) Bevel Seat Hose Coupling - Female Shank

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Holedall Internal Expansion (IX) Bevel Seat Hose Couplings - Female Shank - 304 Stainless Steel

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: IXFS32-3A Dixon
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Applications:
  • Flow Chief Sanitary Fittings are used in the food, dairy and beverage industries, recommended where increased flow capacity is important.
Features:
  • Only use with the IXAN nuts.
Safety Notes:
  • Flow Chief internal expansion (IX) fittings are only to be used with Flow Chief stainless steel ferrules
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage.
  • Strict adherence to ferrule OD range (internally expanded) for each hose end to be assembled is essential for satisfactory performance.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
Part Number Size Weight (Lbs.)
IXFS24 1-1/2" 0.7200
IXFS32 2" 0.9205
IXFS32-3A* 2" N/A
IXFS40 2-1/2" 1.4300
IXFS48 3" 1.9950
IXFS64 4" 4.3100
* Must use plug part # IXFDPLG187
