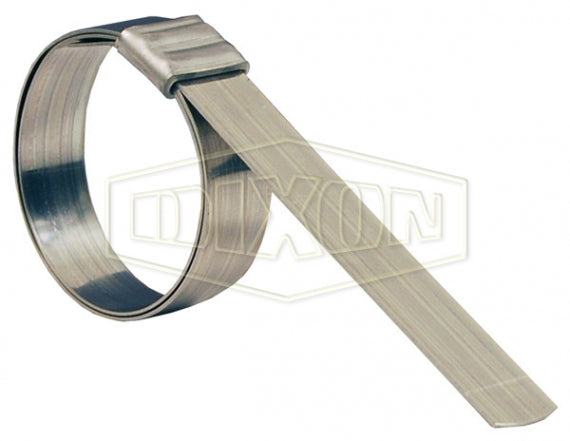

JS202 by Dixon Valve | JS-Series | Smooth I.D. Roll Over Type Clamp | 3/8" Band Width | 1-3/8" Clamp ID | 201 Stainless Steel Band | Box of 100

Save $29.67

$267.00

$267.00 - $267.00

$267.00

$237.33

$237.33 - $237.33

$237.33

Dixon Valve
Smooth I.D. - Roll Over Type Clamps | JS-Series

For use with industrial hose made of stiffer, thinner thermoplastics.

Package Quantity: 100 EA

Quantity

Specifications for Variant SKU: JS202 Dixon \| 100 \|
Series:	JS-Series
Material(s):	201 Stainless Steel
Clamp Thickness:	0.03
Clamp Width:	0.375

Features:
Provide a uniform, gap-free inside diameter and strong holding power.
Installation Tools:
Install with roll over type clamp tools and most common band clamp tools such as the 51960 and 51970 band tools.

201 Stainless Steel Part Number	Galvanized Steel Part Number	Band Width	Clamp ID	Band Thickness
JS201	JS301	3/8"	13/16"	.025"
JS243	JS343	3/8"	1"	.025"
JS202	JS302	3/8"	1-3/8"	.025"
JS245	-	3/8"	2"	.025"
JS203	JS303	1/2"	1"	.030"
JS204	JS304	1/2"	1-1/4"	.030"
JS230	-	1/2"	2-3/4"	.030"
JS205	JS305	5/8"	1-1/2"	.030"
JS206	JS306	5/8"	1-3/4"	.030"
JS207	JS306	5/8"	2"	.030"
JS208	JS308	5/8"	2-1/4"	.030"
JS209	JS309	5/8"	2-1/2"	.030"
JS210	-	3/4"	2-3/4"	.030"
JS211	JS311	3/4"	3"	.030"
JS212	JS312	3/4"	3-1/2"	.030"
JS213	JS313	3/4"	4"	.030"
JS214	JS314	3/4"	4-1/2"	.030"
JS215	JS315	3/4"	5"	.030"
JS216	-	3/4"	6"	.030"
JS218	-	3/4"	7"	.030"
