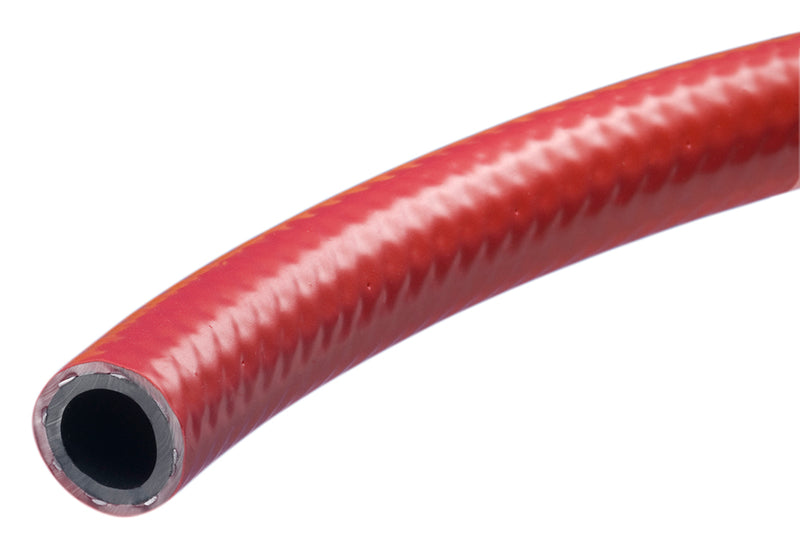

K1184-04X500 Kuri-Tec by Kuriyama | K1184 Series | Utility Grade PVC Air Hose | 1/4" ID | .475" OD | Red | 500ft Length

K1184-04X500 Kuri-Tec by Kuriyama | K1184 Series | Utility Grade PVC Air Hose | 1/4" ID | .475" OD | Red | 500ft Length

Save $63.88 Save $63.88
$198.88
$198.88 - $198.88
$198.88
$135.00
$135.00 - $135.00
$135.00

Kuri Tec® by Kuriyama
K1184 Series | Utility Grade PVC Air Hose

A lightweight utility air and water hose economically designed for indoor and outdoor applications operating in temperate climate conditions.

Package Quantity: 500 Foot

Specifications for Variant SKU: K1184-04X500 Kuriyama | 500 |
Brand: Kuri Tec
Series: K1184 Series
Hose Color(s): Red
Internal Diameter: 0.25in - 1/4in
Outer Diameter: 0.475in
Tubing Construction: PVC
Cover Construction: PVC

SPECIFICATIONS

Applications: Transfer of air, water and mild water soluble chemicals.
Indoor/outdoor air tool service.
Tube: Black PVC compound. Reinforcement: High tensile strength yarn.
Cover: PVC compound. Service Temperature Range: +14°F (-10°C) to +150°F (+65°C)
Specifications: Phthalate Free
Other Features:
  • Economical, lightweight construction.
  • U. V. and weather resistant.
  • One-piece coils.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
K1181 Series | Yellow
Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)
K1181-04X500 1/4" 6.5mm 0.475" 12.1mm 300 PSI
K1181-06X500 3/8" 9.5mm 0.600" 15.2mm 300 PSI
K1184 Series | Red
Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)
K1184-04X500 1/4" 6.5mm 0.475" 12.1mm 300 PSI
K1184-06X500 3/8" 9.5mm 0.600" 15.2mm 300 PSI
K1186 Series | Blue
Part Number
100ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)
- K1186-04X500 1/4" 6.5mm 0.475" 12.1mm 300 PSI
K1186-06X100 K1186-06X500 3/8" 9.5mm 0.600" 15.2mm 300 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
