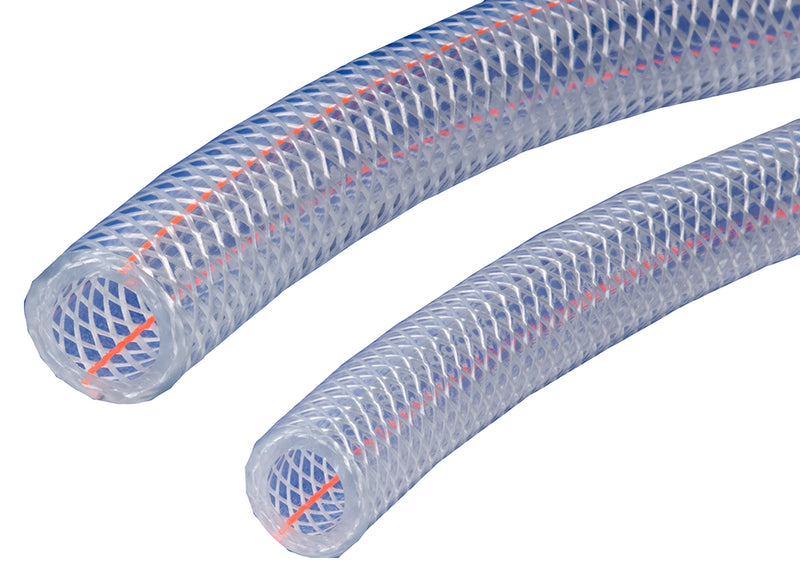

K3150-04X500R Kuri-Tec by Kuriyama | CLEARBRAID® | K3150 Series | Standard Wall PVC Food & Beverage Hose | 1/4" ID | .438" OD | 500ft Reel

K3150-04X500R Kuri-Tec by Kuriyama | CLEARBRAID® | K3150 Series | Standard Wall PVC Food & Beverage Hose | 1/4" ID | .438" OD | 500ft Reel

Save $371.07 Save $371.07
$617.07
$617.07 - $617.07
$617.07
$246.00
$246.00 - $246.00
$246.00

Kuri Tec® by Kuriyama
CLEARBRAID® | K3150 Series | Standard Wall PVC Food & Beverage Hose

A lightweight standard wall crystal clear Phthalate Free yarn reinforced hose suitable for a wide variety of food and beverage applications.

Package Quantity: 500 Foot

Specifications for Variant SKU: K3150-04X500R Kuriyama | 500 |
Brand: CLEARBRAID, Kuri Tec
Series: K3150 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.25in - 1/4in
Outer Diameter: 0.438in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, NSF 51, RoHS Compliant, UL 94V-0 Flammability Rating, Applicable USDA Requirements, USP - Class VI

SPECIFICATIONS

Applications: Food & beverage dispensing.
Deionized water.
Liquid food products.
Air and water lines.
Powdered food products.
Potable water transfer.
Air breathing lines.
Pneumatic lines.
Packaging machines.
Tube: Crystal clear Phthalate Free PVC compound, formulated with ingredients in compliance with applicable FDA requirements, meets USDA, 3A, NSF, UL, RoHS and USP Class VI criteria. Reinforcement: Reinforced with spiraled polyester yarn and longitudinal orange tracer yarns for identification.
Cover: - Service Temperature Range: +25°F (-4°C) to +150°F (+65°C)
Specifications: 3A
FDA
NSF Certified Under Standard 51
Phthalate Free
RoHS
UL
USDA
USP
Other Features:
  • Constructed with Phthalate Free compounds.
  • NSF-51 certified material.
  • Crystal clear - allows visual confirmation of product flow.
  • Longitudinally-reinforced to reduce elongation under pressure.
  • Light weight.
  • Self-extinguishing.
  • Non-marking.
  • Silicone-free.
  • Non-conductive.
  • One-piece lengths.
  • Resistant to chemicals.
  • Compound hardness 73±3 Shore "A".
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
  • CLEARBRAID® is a registered trademark of Accuflex Industrial Hose, Ltd. and is used under license by Kuriyama of America, Inc.
Part Number Nominal ID Nominal OD Max. Working
Pressure		 Length
in mm in mm @70°F
(20°C)		 @122°F
(66°C)
K3150-03X100 3/16" 4.8mm 0.375" 9.5mm 250 PSI 150 PSI 100 ft
K3150-03X300 3/16" 4.8mm 0.375" 9.5mm 250 PSI 150 PSI 300 ft

K3150-04X100 1/4" 6.5mm 0.438" 11.1mm 250 PSI 150 PSI 100 ft
K3150-04X300 1/4" 6.5mm 0.438" 11.1mm 250 PSI 150 PSI 300 ft
K3150-04X500R 1/4" 6.5mm 0.438" 11.1mm 250 PSI 150 PSI 500 ft Reel

K3150-05X100 5/16" 7.9mm 0.531" 13.5mm 250 PSI 135 PSI 100 ft
K3150-05X300 5/16" 7.9mm 0.531" 13.5mm 250 PSI 135 PSI 300 ft

K3150-06X100 3/8" 9.5mm 0.594" 15.1mm 225 PSI 125 PSI 100 ft
K3150-06X300 3/8" 9.5mm 0.594" 15.1mm 225 PSI 125 PSI 300 ft
K3150-06X500R 3/8" 9.5mm 0.594" 15.1mm 225 PSI 125 PSI 500 ft Reel

K3150-08X100 1/2" 12.7mm 0.750" 19.1mm 200 PSI 100 PSI 100 ft
K3150-08X300 1/2" 12.7mm 0.750" 19.1mm 200 PSI 100 PSI 300 ft
K3150-08X500R 1/2" 12.7mm 0.750" 19.1mm 200 PSI 100 PSI 500 ft Reel

K3150-10X100 5/8" 15.9mm 0.891" 22.6mm 200 PSI 100 PSI 100 ft
K3150-10X200 5/8" 15.9mm 0.891" 22.6mm 200 PSI 100 PSI 200 ft

K3150-12X100 3/4" 19.1mm 1.031" 26.2mm 150 PSI 85 PSI 100 ft
K3150-12X200 3/4" 19.1mm 1.031" 26.2mm 150 PSI 85 PSI 200 ft
K3150-12X300 3/4" 19.1mm 1.031" 26.2mm 150 PSI 85 PSI 300 ft
K3150-12X500R 3/4" 19.1mm 1.031" 26.2mm 150 PSI 85 PSI 500 ft Reel

K3150-16X100 1" 25.4mm 1.300" 33.0mm 125 PSI 75 PSI 100 ft
K3150-16X200 1" 25.4mm 1.300" 33.0mm 125 PSI 75 PSI 200 ft
K3150-16X300 1" 25.4mm 1.300" 33.0mm 125 PSI 75 PSI 300 ft
K3150-16X300R 1" 25.4mm 1.300" 33.0mm 125 PSI 75 PSI 300 ft Reel

K3150-20X50 1-1/4" 31.8mm 1.620" 41.1mm 100 PSI 55 PSI 50 ft
K3150-20X100 1-1/4" 31.8mm 1.620" 41.1mm 100 PSI 55 PSI 100 ft

K3150-24X50 1-1/2" 38.1mm 1.938" 49.2mm 100 PSI 50 PSI 50 ft
K3150-24X100 1-1/2" 38.1mm 1.938" 49.2mm 100 PSI 50 PSI 100 ft

K3150-32X50 2" 50.8mm 2.490" 63.2mm 75 PSI 35 PSI 50 ft
K3150-32X100 2" 50.8mm 2.490" 63.2mm 75 PSI 35 PSI 100 ft
