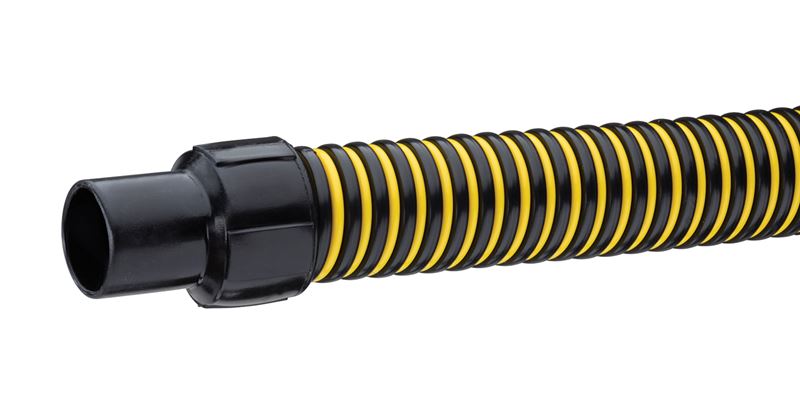

KBEE300X60 by Kuriyama | King Bee™ | KBEE™ Series | Liquid Suction and Wastewater Hose | 3" Hose ID | 4.06" Hose OD | 60ft Length

Save $131.96

$630.88

$630.88 - $630.88

$630.88

$498.92

$498.92 - $498.92

$498.92

Kuriyama
King Bee™ | KBEE™ Series | Liquid Suction and Wastewater Hose

Designed for standard-duty water suction, this hose is ideal for pumps used in construction dewatering, trash removal, and septic or wastewater handling applications.

Made in the USA.

Specifications for Variant SKU: KBEE300X60 Kuriyama
Brand:	King Bee
Series:	KBEE Series
Hose Color(s):	Black & Yellow
Internal Diameter:	3in
Outer Diameter:	4.06in
Tubing Construction:	LDPE Polyethylene
Cover Construction:	LDPE Polyethylene

SPECIFICATIONS

Other Features:
Applications:	Pumps, rental and construction dewatering. Pumps, trash. Septic and wastewater handling. Water suction - standard duty.
Tube:	Flexible polyethylene (LDPE)	Reinforcement:	-
Cover:	polyethylene (LDPE) ribs and cuffed ends.	Service Temperature Range:	-40°F (-40°C) to +150°F (+65°C)
Specifications:	-

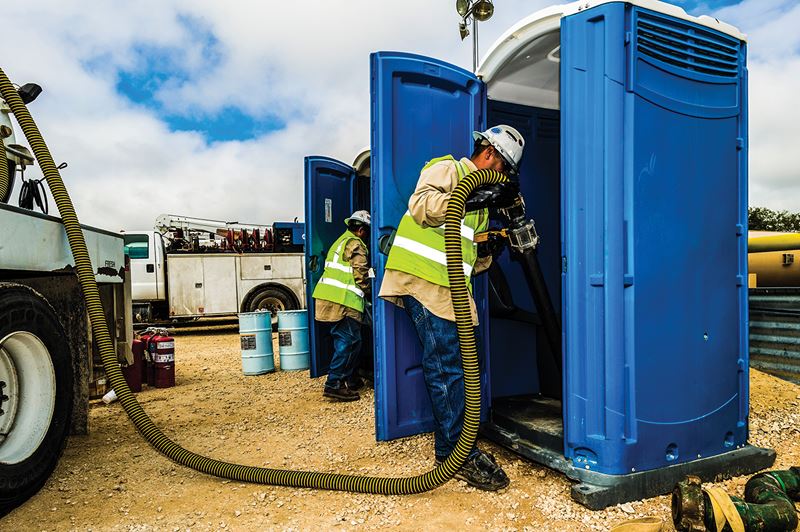

Superior Flexibility - Corrugated tube and ribs provides high flexibility, perfect for maneuvering in tight areas such as portable toilets. "Cold-Flex" Materials - Hose remains flexible in subzero temperatures. Crush Resistant - Will spring back to original shape after being crushed, will not kink! Easy Slide Helix - Exposed ribs protect hose tube from cover wear, and allow hose to slide easily over rough surfaces. Easy-to-handle. Leak Proof Cuffs - Overmolded cuffs eliminate leaking and will not separate from the hose. Each cuff and unit is 100% factory tested. Note: Service life may vary depending on operating conditions and type of material being conveyed.

Part Number	Nominal ID		Nominal OD		Working Pressure	Vacuum Rating	Min. Bend Radius	Length	Cuff
Part Number	in	mm	in	mm	@68°F	@68°F	@68°F	Length	Cuff
KBEE200X10	2"	52.7mm	2.76"	69.5mm	15 PSI	29 in. Hg	3.5"	10ft	CUFF2
KBEE200X20	2"	52.7mm	2.76"	69.5mm	15 PSI	29 in. Hg	3.5"	20ft	CUFF2
KBEE200X25	2"	52.7mm	2.76"	69.5mm	15 PSI	29 in. Hg	3.5"	25ft	CUFF2
KBEE200X30	2"	52.7mm	2.76"	69.5mm	15 PSI	29 in. Hg	3.5"	30ft	CUFF2
KBEE200X40	2"	52.7mm	2.76"	69.5mm	15 PSI	29 in. Hg	3.5"	40ft	CUFF2
KBEE200X50	2"	52.7mm	2.76"	69.5mm	15 PSI	29 in. Hg	3.5"	50ft	CUFF2
KBEE200X60	2"	52.7mm	2.76"	69.5mm	15 PSI	29 in. Hg	3.5"	60ft	CUFF2

KBEE300X20	3"	76.0mm	4.06"	97.0mm	7 PSI	29 in. Hg	6.5"	20ft	CUFF3
KBEE300X25	3"	76.0mm	4.06"	97.0mm	7 PSI	29 in. Hg	6.5"	25ft	CUFF3
KBEE300X30	3"	76.0mm	4.06"	97.0mm	7 PSI	29 in. Hg	6.5"	30ft	CUFF3
KBEE300X50	3"	76.0mm	4.06"	97.0mm	7 PSI	29 in. Hg	6.5"	50ft	CUFF3
KBEE300X60	3"	76.0mm	4.06"	97.0mm	7 PSI	29 in. Hg	6.5"	60ft	CUFF3
