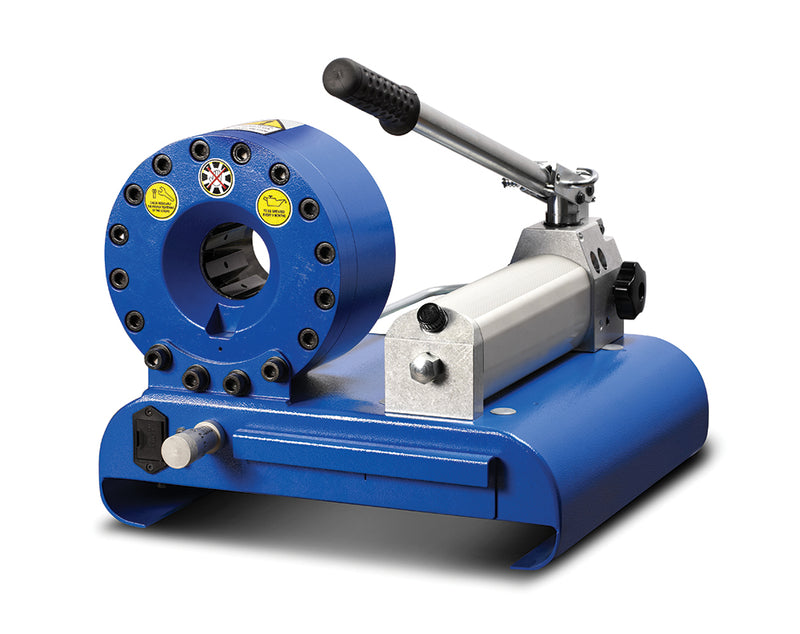

KC1-H47PM KuriCrimp™ by Kuriyama | KC1-H47PM Series | Service Crimper | Hand Pump | 110 Ton Crimping Force | Includes: Die Change Tool, Hand Pump & Die Storage Drawer

KC1-H47PM KuriCrimp™ by Kuriyama | KC1-H47PM Series | Service Crimper | Hand Pump | 110 Ton Crimping Force | Includes: Die Change Tool, Hand Pump & Die Storage Drawer

Save $1,374.28 Save $1,374.28
$4,809.99
$4,809.99 - $4,809.99
$4,809.99
$3,435.71
$3,435.71 - $3,435.71
$3,435.71

Kuriyama of America Inc.
KuriCrimp™ | KC1-H47PM Series | Service Crimper

A reliable crimper that won't take up a lot of space.

With its small footprint the KC1-H47PM is a perfect fit for crowded shops. Its small size also makes it good for quick trips into the field.

Powered by a hand pump.
Specifications for Variant SKU: KC1-H47PM Kuriyama
Brand: KuriCrimp
Series: KC1-H47PM Series
Hose Capacity (in):
  • 1 - 2 Wire: 1
  • 4 SP / 6 SP: NA
  • 90° Fittings: 3/8
  • Industrial: NA
Crimping Force (ton):
  • 110
Opening Diameter:
  • Max. With Dies (mm / in): 49 / 1.93
  • By Die Size (mm): Die Size + 20
Crimper Size:
  • L x W x H (in): 15.4 x 20.7 x 11.8
  • Weight (lbs): 71
Control Mechanism:
  • Dial micrometer, with electric limit switch indicating when the crimp diameter is reached.
  Part Number Description
KC1-H47PM Hand Pump Powered
110 Ton Crimping Force
Includes: Die Change Tool, Hand Pump, & Die Storage Drawer
Included Accessories
KCDCT-H39
Die Change Tool		 Hand Pump Die Storage Drawer
Dies | H39 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDH39-6 6.0 - 8.0mm 6mm 55mm 4.0 lbs
KCDH39-6 8.0 - 10.0mm 8mm 55mm 4.0 lbs
KCDH39-10 10.0 - 12.0mm 10mm 55mm 4.0 lbs
KCDH39-12 12.0 - 14.0mm 12mm 55mm 4.0 lbs
KCDH39-14 14.0 - 16.0mm 14mm 55mm 4.0 lbs
KCDH39-16 16.0 - 19.0mm 16mm 55mm 4.0 lbs
KCDH39-19 19.0 - 22.0mm 19mm 55mm 4.0 lbs
KCDH39-22 22.0 - 25.0mm 22mm 55mm 4.0 lbs
KCDH39-25 25.0 - 29.0mm 25mm 65mm 4.0 lbs
KCDH39-29 29.0 - 34.0mm 29mm 65mm 4.0 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
