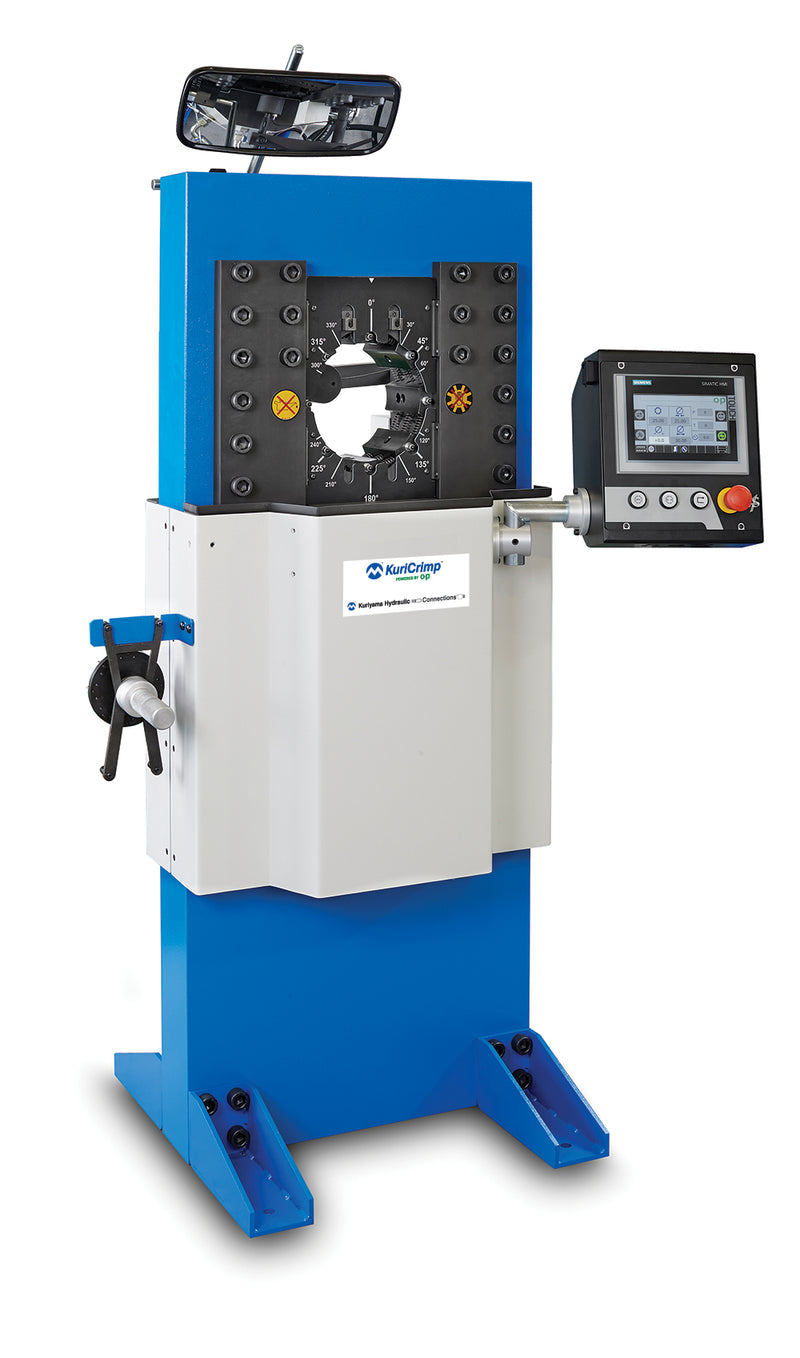

KC4-V150-230/3 KuriCrimp™ by Kuriyama | KC4-V150 Series | High Volume Crimper | 7 HP (230 V) 3 PH Motor | 340 Ton Crimping Force | Includes: Die Cart, Electric Foot Pedal, Fitting Orientation Protractor, Crimp Calculator

KC4-V150-230/3 KuriCrimp™ by Kuriyama | KC4-V150 Series | High Volume Crimper | 7 HP (230 V) 3 PH Motor | 340 Ton Crimping Force | Includes: Die Cart, Electric Foot Pedal, Fitting Orientation Protractor, Crimp Calculator

Save $5,327.09 Save $5,327.09
$47,943.77
$47,943.77 - $47,943.77
$47,943.77
$42,616.68
$42,616.68 - $42,616.68
$42,616.68

Kuriyama of America Inc.
KuriCrimp™ | KC4-V150 Series | High Volume Crimper

A high volume, production crimper, the KC4-V150 crimps all types and sizes of hydraulic hose, as well as industrial hose up to 4".

Its back limit switch and advanced Siemen’s ES4 computerized controller take efficiency to the highest level.

Its power pack is separated from the main unit creating a thin profile.

Features: Greaseless Operation, Silent Pump.
Specifications for Variant SKU: KC4-V150-230/3 Kuriyama
Brand: KuriCrimp
Series: KC4-V150 Series
Hose Capacity (in):
  • 1 - 2 Wire: 2-1/2"
  • 4 SP / 6 SP: 2-1/2
  • 90º Fittings: 2-1/2
  • Industrial: 4
Crimping Force (ton):
  • 340
Opening Diameter:
  • Max. Without Dies (mm / in): 189 / 7.44
  • Max. With Dies (mm / in): 166 / 6.35
  • By Die Size (mm / in): Die Size + 70 / 2.75
Crimper Size:
  • L x W x H (in): 36.2 x 28.7 x 63.1
  • Crimper + Power Pack Weight (lbs): 2,707 + 606 = 3,313
Control Mechanism:
  • Large, full-color, touch-screen display.
  • Stores up to 1,000 crimp specifications.
  • Built-in crimp diameter calculator.
  • USB port connection.
  • Optional upgrades such as digital caliper, history data save, barcode reader, webcam and WiFi connection.
Motor:
  • 7 HP (230 V) 3 PH
Hydraulic Fluid:
  • Type: ISO 46
  • Amount: 167L = 44.12 Gal.
  Part Number Description
KC4-V150-230/3 7 HP (230 V) 3 PH Motor
340 Ton Crimping Force
Includes: Die Cart, Electric Foot Pedal, Fitting Orientation Protractor, Crimp Calculator
Included Accessories
DIECART-V119
Die Cart (24 pc.)		 PEDAL-ES
Electric Foot Pedal		 Fitting Orientation Protractor Crimp Calculator
Dies | V119 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDV119-10 10.0 - 12.0mm 10mm 60mm 14.4 lbs
KCDV119-12 12.0 - 14.0mm 12mm 60mm 14.4 lbs
KCDV119-14 14.0 - 16.0mm 14mm 60mm 15.5 lbs
KCDV119-16 16.0 - 19.0mm 16mm 60mm 15.5 lbs
KCDV119-19 19.0 - 22.0mm 19mm 60mm 16.6 lbs
KCDV119-22 22.0 - 25.0mm 22mm 60mm 16.6 lbs
KCDV119-25 25.0 - 29.0mm 25mm 60mm 15.5 lbs
KCDV119-29 29.0 - 34.0mm 29mm 70mm 15.5 lbs
KCDV119-34 34.0 - 38.0mm 34mm 70mm 15.5 lbs
KCDV119-38 38.0 - 42.0mm 38mm 85mm 15.5 lbs
KCDV119-42 42.0 - 46.0mm 42mm 85mm 15.5 lbs
KCDV119-46 46.0 - 50.0mm 46mm 120mm 19.9 lbs
KCDV119-50 50.0 - 54.0mm 50mm 120mm 15.5 lbs
KCDV119-54 54.0 - 58.0mm 54mm 120mm 16.6 lbs
KCDV119-58 58.0 - 63.0mm 58mm 120mm 16.6 lbs
KCDV119-63 63.0 - 69.0mm 63mm 120mm 17.7 lbs
KCDV119-69 69.0 - 73.0mm 69mm 120mm 15.5 lbs
KCDV119-73 73.0 - 77.0mm 73mm 120mm 13.3 lbs
KCDV119-77 77.0 - 86.0mm 77mm 120mm 11.1 lbs
KCDV119-86 86.0 - 90.0mm 86mm 120mm 12.5 lbs
KCDV119-90 90.0 - 96.0mm 86mm 120mm 10.7 lbs
KCDV119-96 96.0 - 103.0mm 96mm 120mm 8.9 lbs
Optional Accessories:
DIECART-V119
Die Cart (24 pc.)		 ES4 Upgrades TABLE-KC
Mounted Side Table
Protection Net with
Activation Switch		 Back Limit Switch MIRROR-H135/170
Back Mirror
