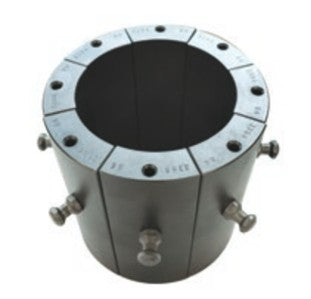

KCDH119-14 KuriCrimp™ by Kuriyama | H119 Series | Die for Standard Volume Crimper | 14.0 - 16.0mm Crimp Range

KCDH119-14 KuriCrimp™ by Kuriyama | H119 Series | Die for Standard Volume Crimper | 14.0 - 16.0mm Crimp Range

Save $137.46 Save $137.46
$481.10
$481.10 - $481.10
$481.10
$343.64
$343.64 - $343.64
$343.64

Kuriyama of America Inc.
KuriCrimp™ | H119 Series | Die for Standard Volume Crimper
Specifications for Variant SKU: KCDH119-14 Kuriyama
Brand: KuriCrimp
Series: H119 Series
Compatible with the following Series: KC1-H135 Series  |   KC3-H170 Series  |   KC3-H130 Series
Dies | H119 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDH119-6 6.0 - 8.0mm 6mm 60mm 11.7 lbs
KCDH119-8 8.0 - 10.0mm 8mm 60mm 11.7 lbs
KCDH119-10 10.0 - 12.0mm 10mm 60mm 11.7 lbs
KCDH119-12 12.0 - 14.0mm 12mm 60mm 11.7 lbs
KCDH119-14 14.0 - 16.0mm 14mm 60mm 11.7 lbs
KCDH119-16 16.0 - 19.0mm 16mm 60mm 11.7 lbs
KCDH119-19 19.0 - 22.0mm 19mm 60mm 11.7 lbs
KCDH119-22 22.0 - 25.0mm 22mm 60mm 12.2 lbs
KCDH119-25 25.0 - 29.0mm 25mm 60mm 12.0 lbs
KCDH119-29 29.0 - 34.0mm 29mm 70mm 12.0 lbs
KCDH119-31 31.0 - 36.0mm 31mm 70mm 12.0 lbs
KCDH119-34 34.0 - 38.0mm 34mm 70mm 12.0 lbs
KCDH119-38 38.0 - 42.0mm 38mm 85mm 12.0 lbs
KCDH119-42 42.0 - 46.0mm 42mm 85mm 15.5 lbs
KCDH119-46 46.0 - 50.0 46mm 95mm 16.5 lbs
KCDH119-50 50.0 - 54.0mm 50mm 95mm 15.5 lbs
KCDH119-54 54.0 - 58.0mm 54mm 95mm 15.5 lbs
KCDH119-54X110 54.0 - 58.0mm 54mm 110mm 15.5 lbs
KCDH119-58 58.0 - 63.0mm 58mm 95mm 14.5 lbs
KCDH119-60X110 60.0 - 63.0mm 58mm 110mm 14.5 lbs
KCDH119-63 63.0 - 69.0mm 63mm 100mm 14.5 lbs
KCDH119-63X120 63.0 - 69.0mm 63mm 120mm 14.5 lbs
KCDH119-69 69.0 - 73.0mm 69mm 100mm 13.5 lbs
KCDH119-73X120 73.0 - 77.0mm 73mm 120mm 12.5 lbs
KCDH119-77 77.0 - 86.0mm 77mm 120mm 12.5 lbs
KCDH119-86 86.0 - 90.0mm 86mm 120mm 12.5 lbs
KCDH119-90 90.0 - 96.0mm 90mm 150mm 12.5 lbs
KCDH119-96 96.0 - 103.0mm 96mm 120mm 12.5 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
